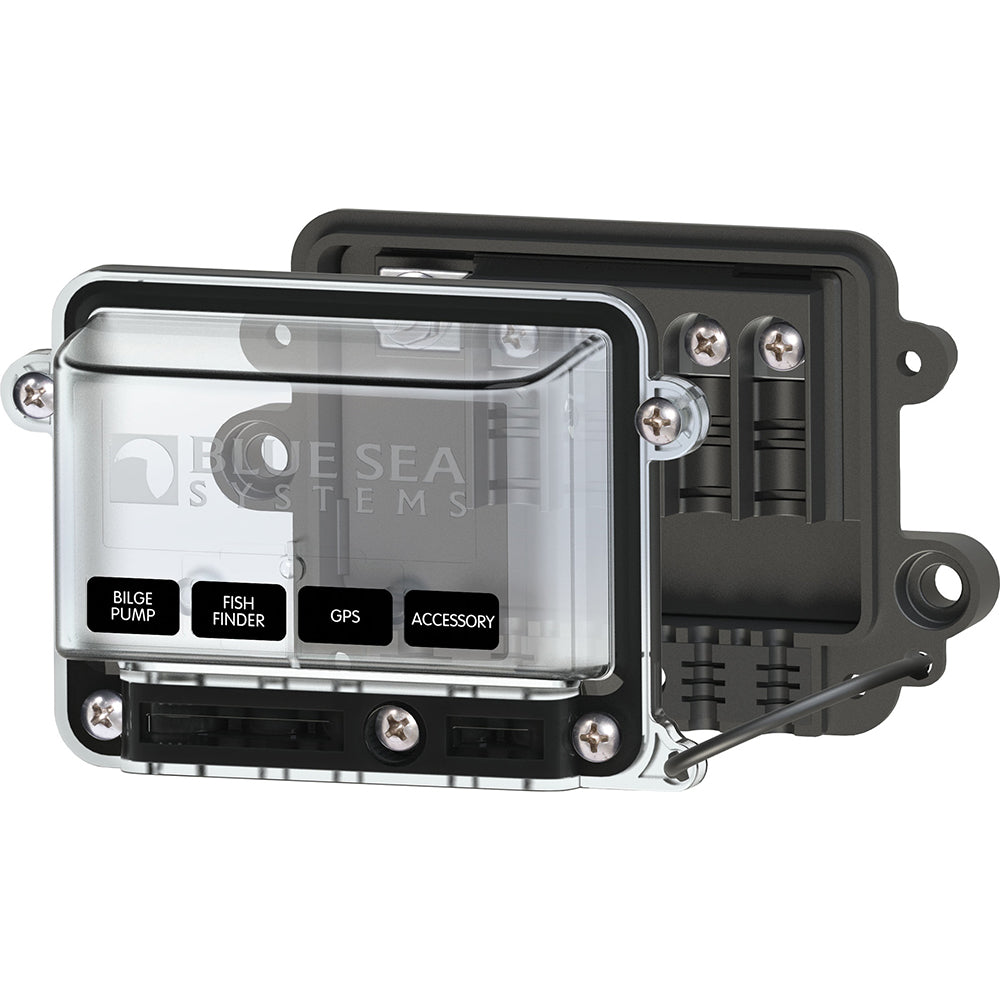

Blue Sea 2356 Water Resistant BusBar - 100 Amp w/Cover

2356 Water Resistant BusBar - 100 Amp with Cover

Provides secure water-resistant bussing for harsh environments. The single side nesting design allows for wire entry from one side to maximize space.

Features:

• Water-resistant design with standard ring or fork type terminals allows for simple wiring with standard tools.
• Accepts a wide range of wire sizes
• Includes 3 wire plugs to maintain water-resistant rating if less than 4 wires are used
• Nests with other Water-Resistant 100A Common BusBars and ST-Blade Water-Resistant Fuse Block for space saving wiring
• Ideal for positive distribution and for the collection of negative or AC ground circuits
• Insulating cover meets ABYC/USCG insulation requirements
• Tin-plated copper busses and fuse clips
• Includes four write-on circuit labels
• Small format standard and custom labels available

Specifications:

• Cover: Yes
• Maximum Voltage: 300V AC/48V DC
• Continuous Rating: 100A AC/100A DC
• Bus Material: Tin-Plated Copper C11000
• Mounting Holes: Accepts 1/4" (6mm) Screws
• Terminal Screw: 4 x #8-32
• Terminal Stud: 1 x #10-32
• Wire Size: (1) 8 AWG to 4 AWG - Input/(4) 16 AWG to 10 AWG - Load
