Introduction

The AIMS Power PILF30W12V240VS Industrial Pure Sine Inverter is designed to deliver uncompromising power reliability for professional and off‑grid applications.

With a continuous 3000W output and massive 9000W surge capacity for 20 seconds, it powers heavy‑startup equipment with ease.

This inverter produces true 120/240VAC split phase power with a true neutral, virtually identical to grid power, ensuring compatibility with sensitive electronics and demanding tools.

Built tough for harsh environments, it features advanced DSP technology for stable voltage regulation, overload and thermal protections, and conformal coating for durability.

Equipped with GFCI outlets, hard wire terminals, and optional remote monitoring, it is engineered for utility trucks, mobile workshops, food trucks, off‑grid homes, and emergency backup systems.

Key Benefits & Advanced Features

• 3000W Continuous Output for reliable performance

• 9000W Surge Capacity for heavy equipment startup

• True Split Phase Power with neutral identical to grid

• Advanced DSP Technology for stable voltage regulation

• Single GFCI Duplex Outlet for enhanced safety

• Hard Wire Terminal for permanent installations

• Overload Protection for safe operation

• Over Temperature Protection for longevity

• Short Circuit Protection built in

• Conformal Coating for harsh environments

• Optional LCD Remote Panel for monitoring

• Optional Ignition Switch for convenience

• Intelligent 3‑Step Fan for efficient cooling

• Stable Output Voltage regardless of battery fluctuations

• Lifetime US Tech Support included

Detailed Technical Specifications

• Power Type: Pure Sine Wave

• Output: 3000W continuous

• Surge: 9000W for 20 seconds

• Voltage: 12VDC input, 120/240VAC split phase output

• Neutral: True neutral identical to grid

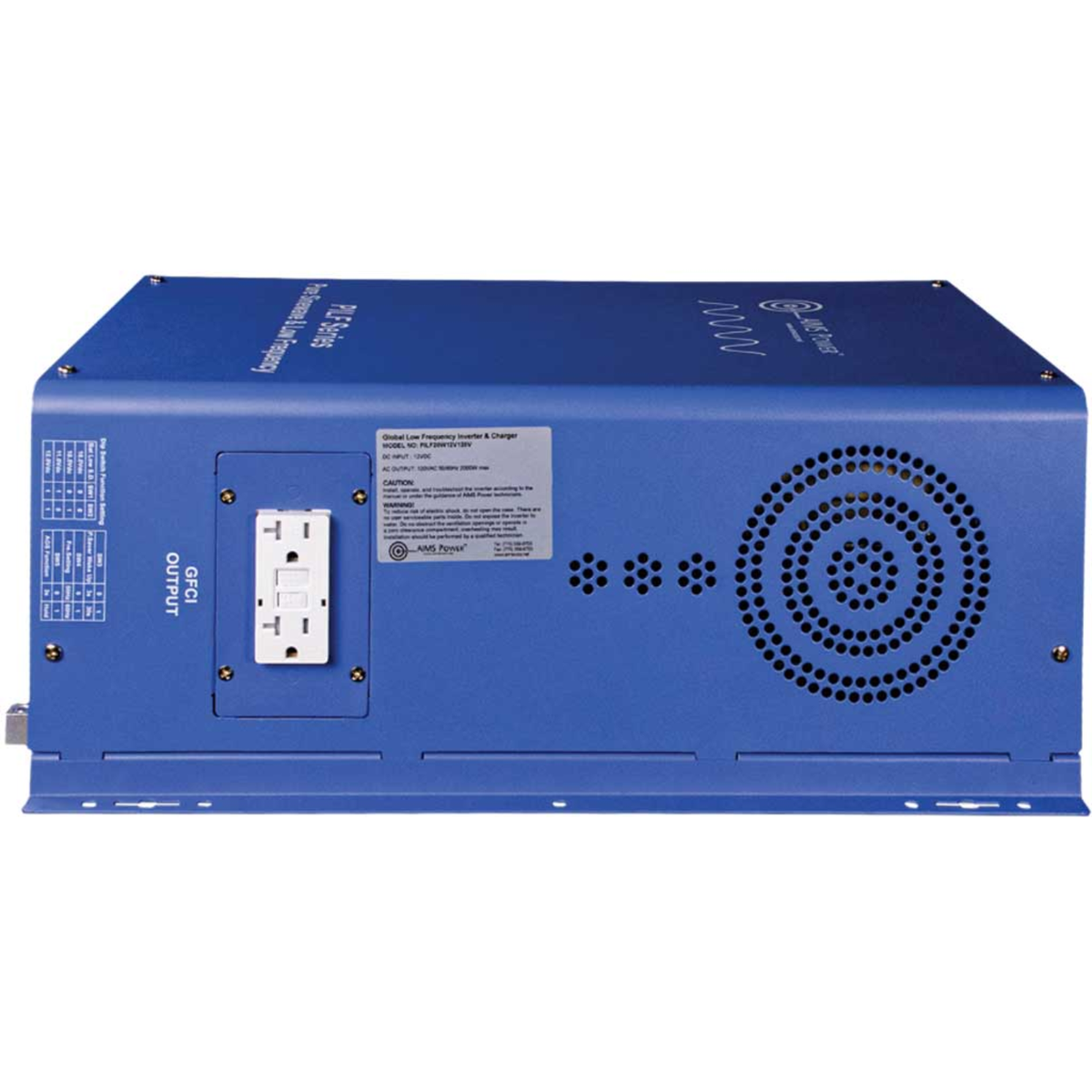

• Outlet: Single GFCI duplex receptacle

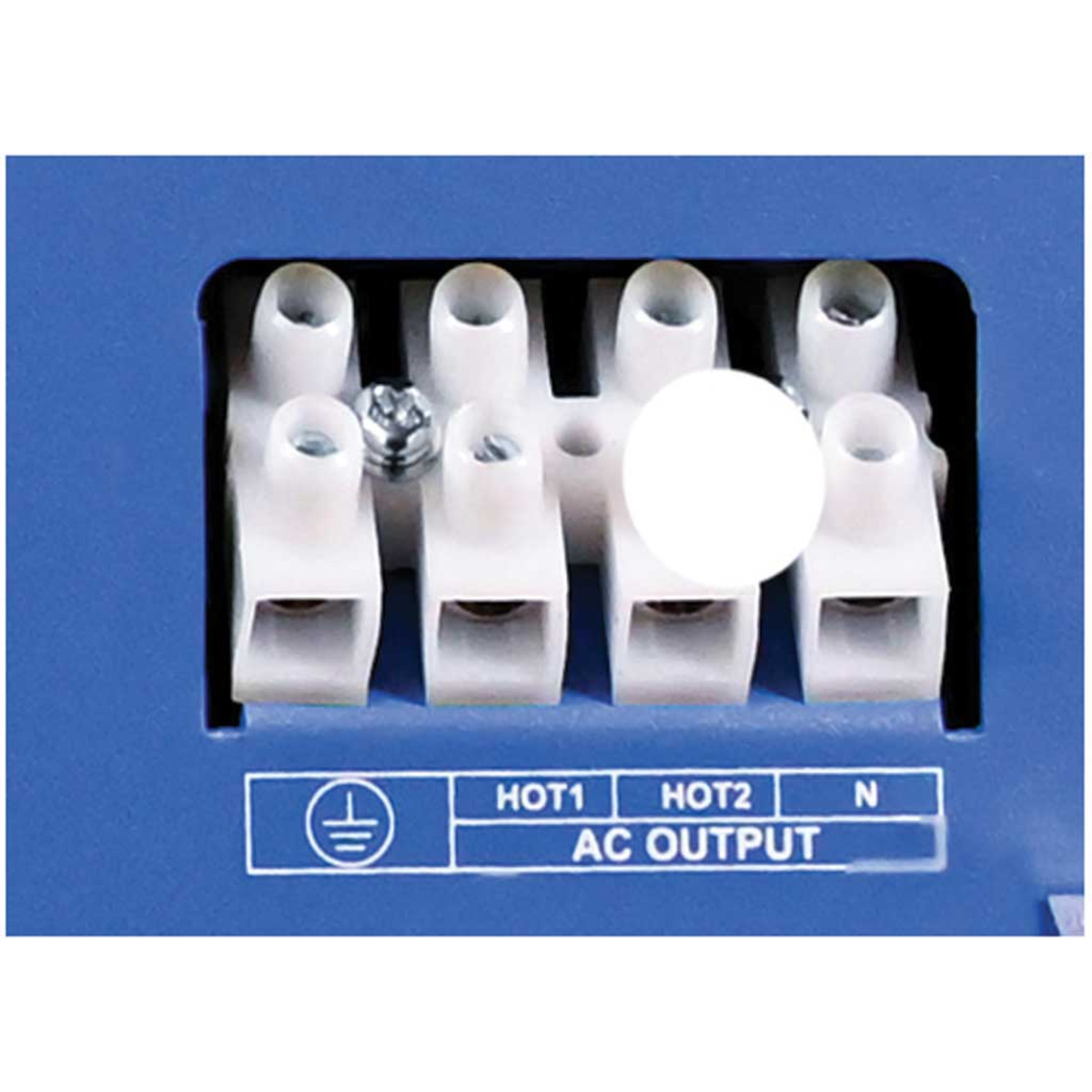

• Terminal: Hard wire connection

• Protections: Overload, over temp, short circuit

• Cooling: Intelligent 3‑step controlled fan

• Coating: Conformal coated for durability

• Technology: Advanced DSP regulation

• Remote Options: LCD panel (REMOTELF), ignition switch (REMLFLCDIGN)

• Warranty: 2 years

• Tech Support: Lifetime US based

• UPC: 840271008752

• Country of Origin: China

Ideal Applications

Utility trucks, mobile workshops, food trucks, off‑grid homes, cabins, emergency backup systems, remote construction sites, and solar/battery installations.

Real‑World Performance & User Experiences

Users highlight reliable startup for heavy tools, stable voltage for sensitive electronics, and rugged durability in demanding environments.

Comparison with Similar Generators

Compared to modified sine inverters, this model offers cleaner power, higher surge capacity, and advanced DSP regulation for sensitive devices.

Step‑by‑Step Setup Guide

1. Position inverter securely.

2. Connect DC input to battery system.

3. Wire AC output via GFCI or hard terminal.

4. Test surge capacity with startup equipment.

5. Configure optional remote panel if required.

Maintenance Schedule & Tips

• Inspect connections monthly.

• Keep unit clean and dust‑free.

• Ensure cooling fan vents remain unobstructed.

• Monitor performance with optional remote panel.

• Avoid prolonged overload conditions.

Compliance and Handling Disclaimer

This inverter complies with U.S. electrical safety standards. Always follow manufacturer guidelines for installation and operation.

Warranty

2‑year manufacturer warranty with lifetime U.S. tech support.

Frequently Asked Questions

Q: Can it power sensitive electronics? A: Yes, pure sine output ensures compatibility.

Q: What is the surge capacity? A: 9000W for 20 seconds.

Q: Is remote monitoring available? A: Yes, optional LCD panel and ignition switch.

Final Verdict

The AIMS Power PILF30W12V240VS Industrial Inverter is a professional‑grade solution for demanding applications.

With split phase pure sine output, massive surge capacity, and rugged design, it delivers reliable grid‑quality power wherever needed.
