Blue Sea 3135 - SMS Panel Enclosure w/UL Main & 3 Branch (12/24V) - 12/24V DC
- Low stock - 2 items left
FREE Shipping in the 48 Contiguous States. Qualifying items are available to Alaska, Hawaii, Puerto Rico, Guam, Saipan & U.S. Territories.
Customers shipping outside the Lower 48 should select the shipping option that best fits their order at checkout. If additional shipping charges apply, we'll contact you before processing. Questions? Call, text, or WhatsApp 352-561-8443.
🏷️ 7% OFF with code POWER7
💗 Shop Pay Installments, Available at checkout.
✅ All major credit cards accepted

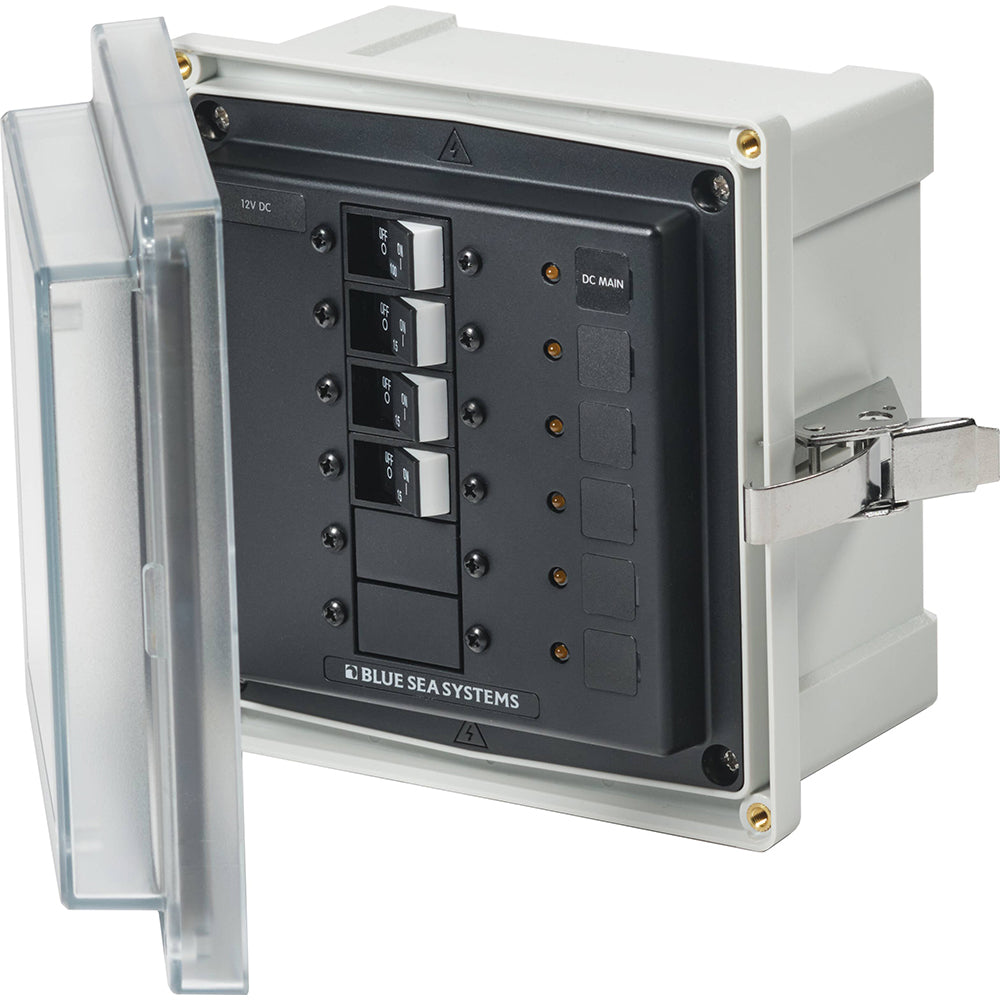

3135 - SMS Panel Enclosure with UL Main & 3 Branch (12/24V) - 12/24V DC
The 3135-panel enclosure for DC circuit breakers and other large frame devices.
Features:
- Blank apertures for custom breaker loading
- Glass-filled polycarbonate base
- Clear cover allows easy view of circuit breaker status
- Overlapping cover for strength and increased gasket protection
- Oversized, formed in place seamless PUR gasket
- Easily removable stainless steel hinge pin for unobstructed installation
- Stainless steel latch secures cover without penetrating the enclosure
- Blank circuit positions accommodate Carling Technologies™ A and C Series Flat Rocker and ELCI Main circuit breakers
- Includes waterproof glands
- LED lights for backlighting and ON indication
Technical Specifications:
- Circuit Breaker Type - 1 x UL 489 DC Main and 3 x Branch 12/24V DC (15A)
- Dimensions (Overall) (H x W x D) - 7.6" x 7.4"" x 4.7" (192 x 188 x 120mm)
- Dimensions (Enclosure) (H x W x D) - 6" x 6" x 4" (152 x 152 x 102mm)
- LEDs Installed - 6 x Amber ON indicating 12/24V DC
In the Box:
- 3135 Enclosure
- Glands x 6
- Labels
- Mounting hardware
- Instruction manual
