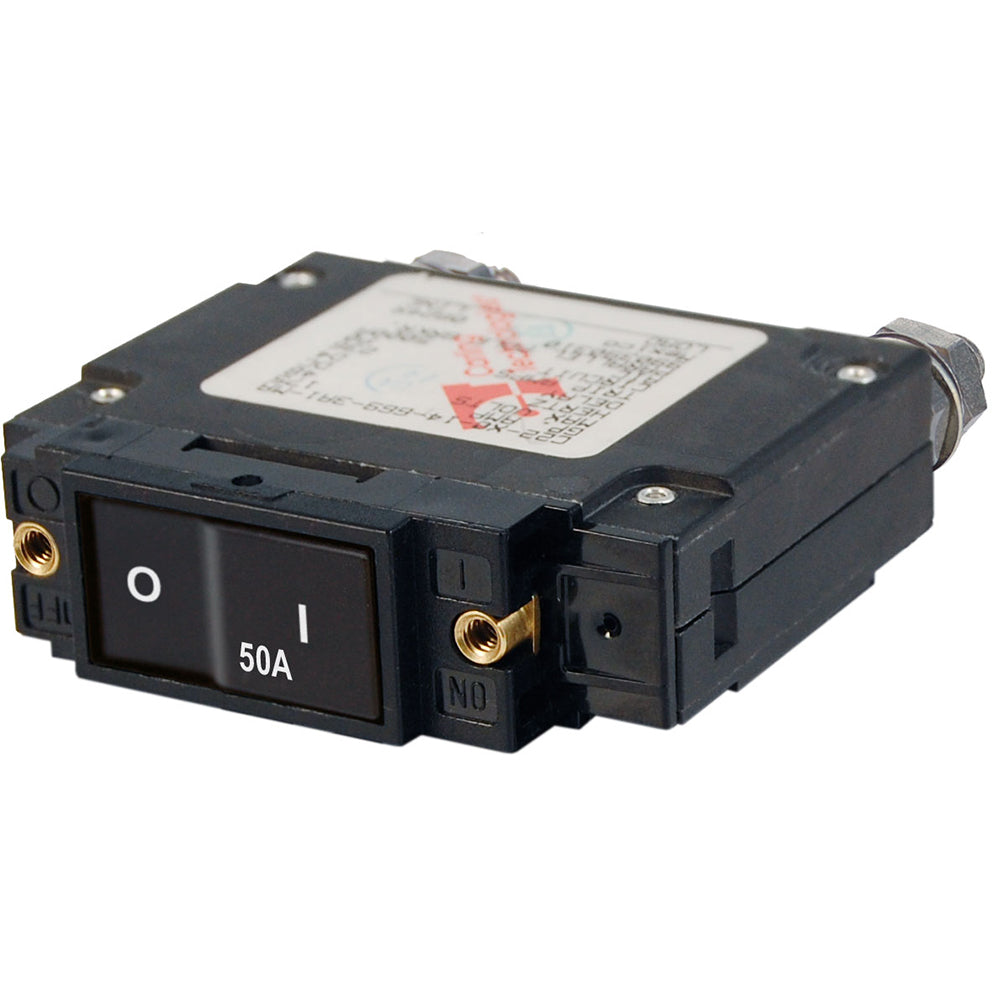

Blue Sea 7546 C-Series Flat Rocker Circuit Breaker - Single Pole - 50A
- In stock, ready to ship
FREE Shipping in the 48 Contiguous States. Qualifying items are available to Alaska, Hawaii, Puerto Rico, Guam, Saipan & U.S. Territories.
Customers shipping outside the Lower 48 should select the shipping option that best fits their order at checkout. If additional shipping charges apply, we'll contact you before processing. Questions? Call, text, or WhatsApp 352-561-8443.
🏷️ 7% OFF with code POWER7
💗 Shop Pay Installments, Available at checkout.
✅ All major credit cards accepted
C-Series Flat Rocker Circuit Breaker - Single Pole - 50A
Features:
- Rocker actuator is flush in the "ON" position, eliminating the risk of accidential switching
- Color actuator indicates "OFF" position
- Provides overcurrent protection for inverters, bow thrusters, and windlasses
- Combines switching and circuit protection into a single device
- "Trip Free" - cannot be held closed after trip
- Ignition protectedsafe for installation aboard gasoline powered boats
Specifications:
- Amperage: 50A AC / 50A DC
- Actuator Style: Flat Rocker
- Poles: 1
- Maximum Voltage: 240V AC / 48V DC
- Circuit Breaker Type: Magnetic Hydraulic - trip free
- Terminal Stud Torque: 35 in-lb (3.95 Nm)
- Interrupt Capacity: 3000A @ 120V AC / 3500A @ 240V AC / 5000A @ 32V DC
- Minimum Operating Temperature: -40° C
- Maximum Operating Temperature: 85° C
- Mounting Screw: #6-32 Stainless Steel
- Mounting Screw Torque: 6 in-lb (0.68 Nm)
- Switching Cycles: 10000
- Terminal Stud: 1/4-20 Tin-Plated Brass
- Weight: 0.38lb (0.17 kg)
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Amperage = 50a
