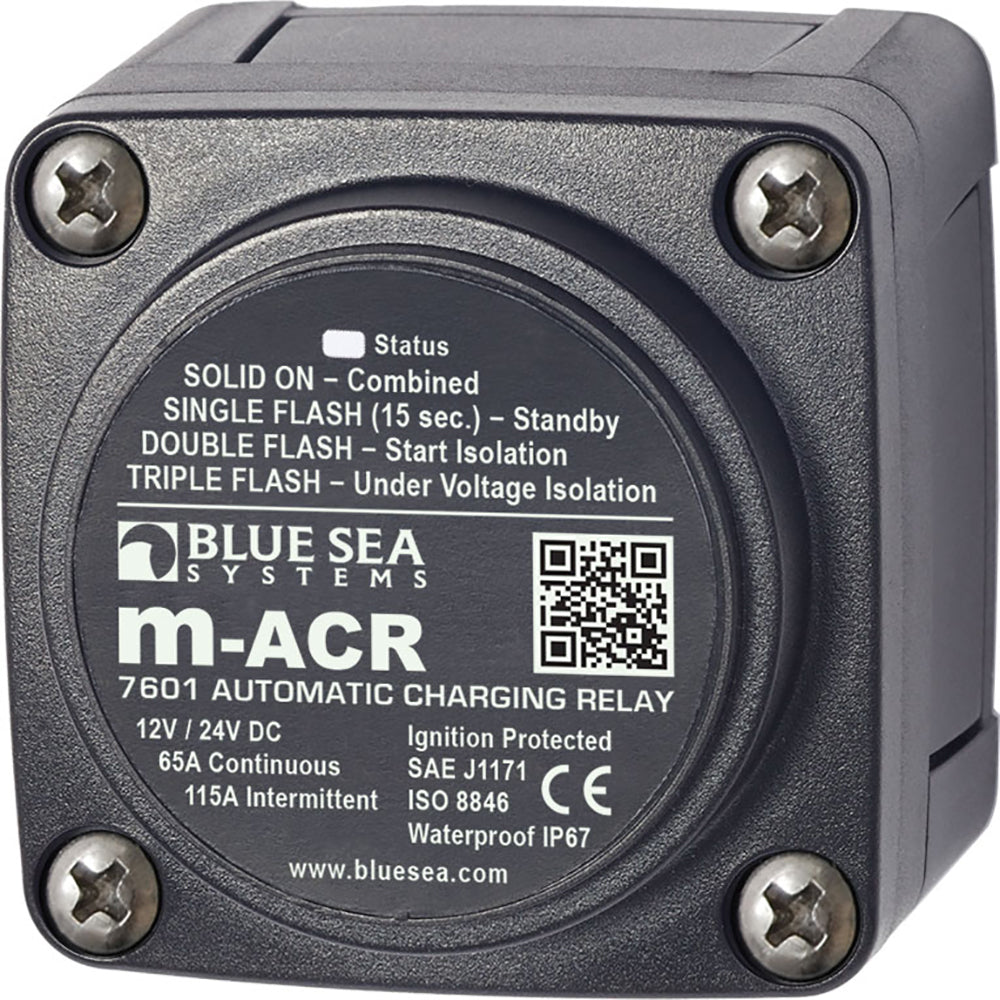

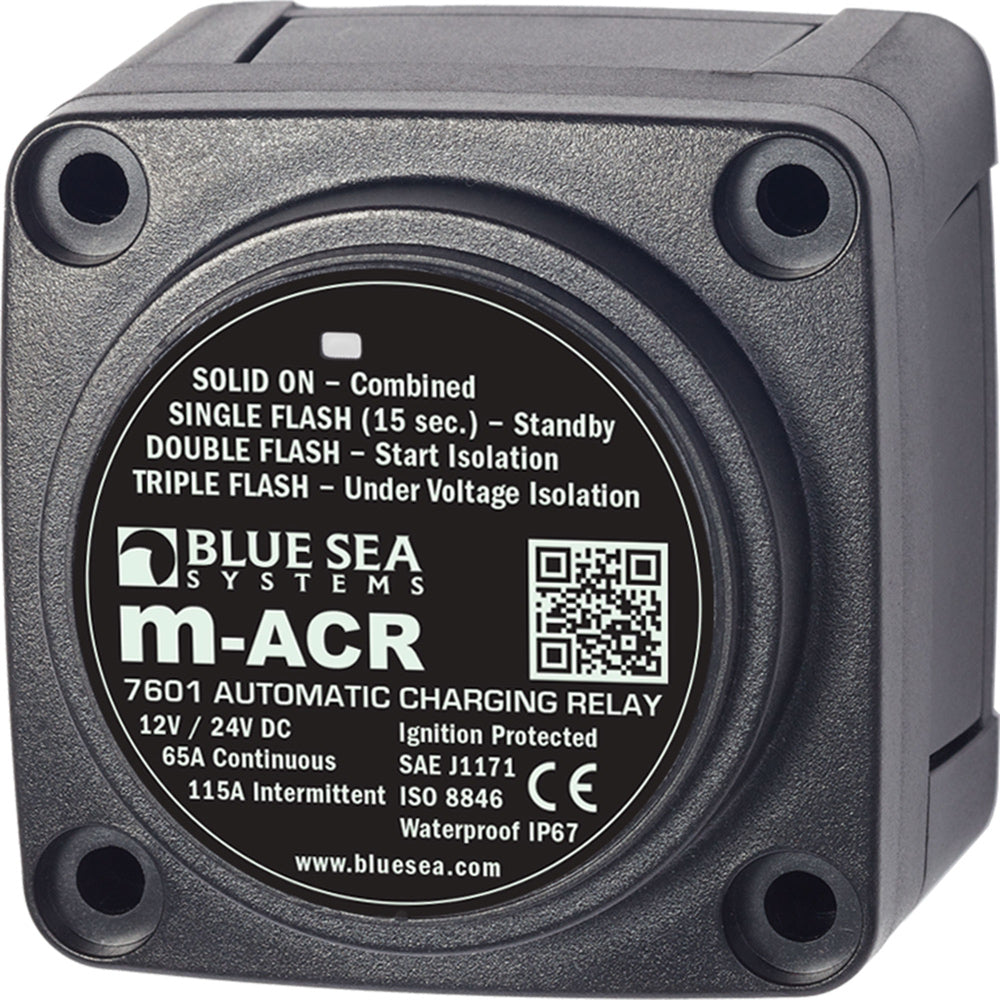

Blue Sea 7601 DC Mini ACR Automatic Charging Relay - 65 Amp

7601 DC Mini ACR Automatic Charging Relay - 65 Amp

Features:

• 65 Amp continuous rating manages the charging current from alternators up to 65 Amps found on most outboards and many inboard engines

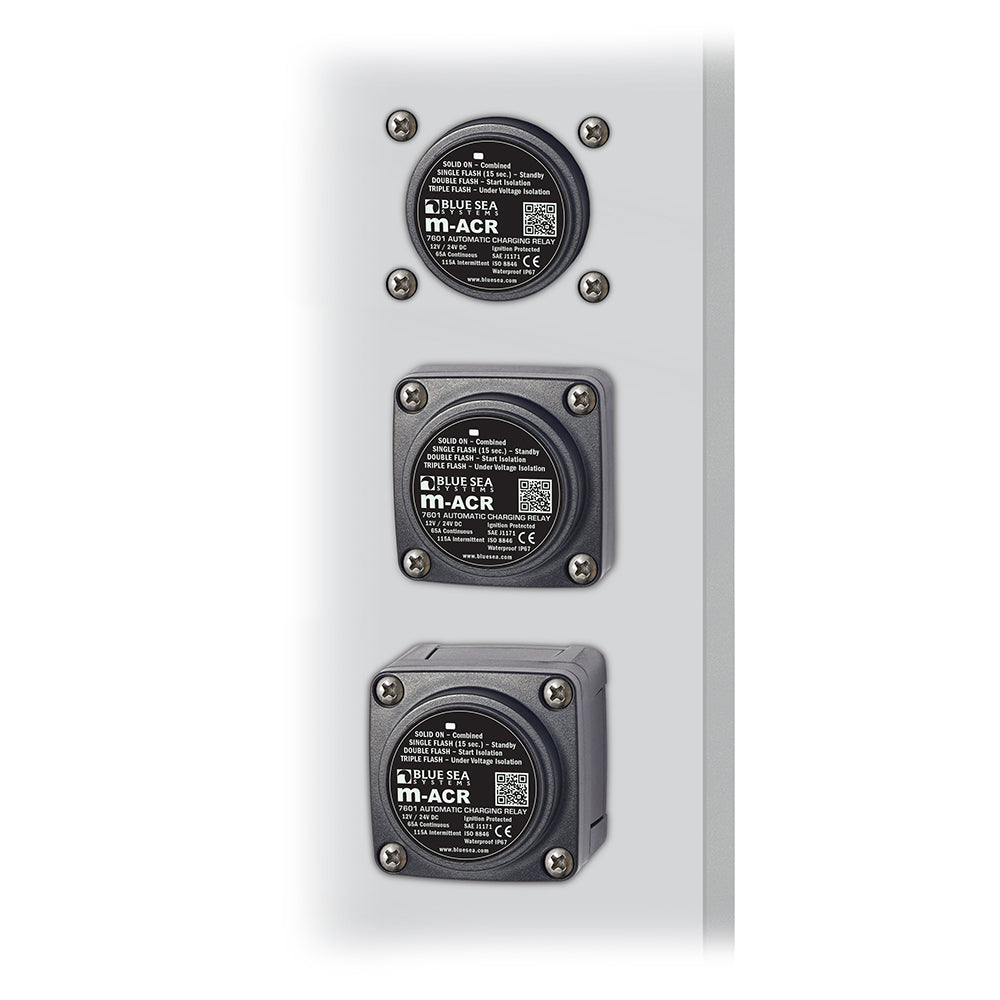

• Compact case design allows surface and panel mounting

• Senses charging on two battery banks

• Snap-on cover insulates terminal connections

• LED indicates ACR status

• 1/4" x .032" male quick connect terminal for ground

• 5/8" (16 mm) stud length to accept multiple cable terminals

• 12V DC voltage input

• Intermittent Rating: 5 min.: 115A

• Terminal Stud Size: 1/4"-20

• Relay Contact Position: Open (30 sec.): 12.75V DC

• Continuous Rating: 65A

• Maximum Torque: 75 in-lb (8.5 Nm)

• Relay Contact Position - Open High: 16.0V DC

• Amperage Operating Current: 175mA (Combine)

• Relay Contact Position: Combine (30 sec.): 13.0V DC

• Under Voltage Lockout: 9.5V DC

• Amperage Operating Current: 15mA (Open)

• Relay Contact Position: Combine (2 min.): 13.6V DC

• Maximum Cable Size: 1/0 AWG

• Relay Contact Position: Open (10 sec.): 12.35V DC

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Continuous Amperage = 65a
