Blue Sea 7700100 ML Solenoid 12V 500A w/Manual Control & Deutsch Connector
- Low stock - 1 item left
FREE Shipping in the 48 Contiguous States. Qualifying items are available to Alaska, Hawaii, Puerto Rico, Guam, Saipan & U.S. Territories.
Customers shipping outside the Lower 48 should select the shipping option that best fits their order at checkout. If additional shipping charges apply, we'll contact you before processing. Questions? Call, text, or WhatsApp 352-561-8443.
🏷️ 7% OFF with code POWER7
💗 Shop Pay Installments, Available at checkout.
✅ All major credit cards accepted

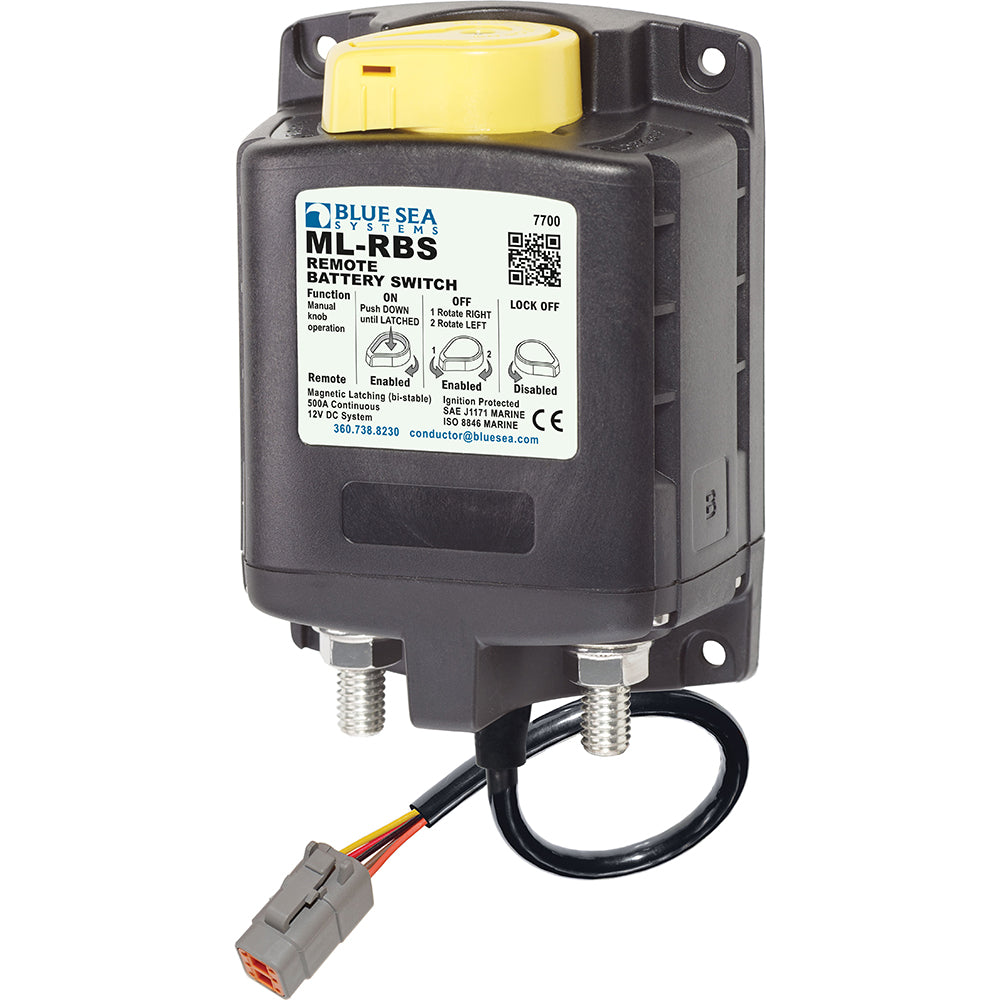

7700100 ML Solenoid 12V 500A with Manual Control & Deutsch Connector
500 Amp magnetic latching switch provides high amperage switching under load, manually or from remote locations.
Features:

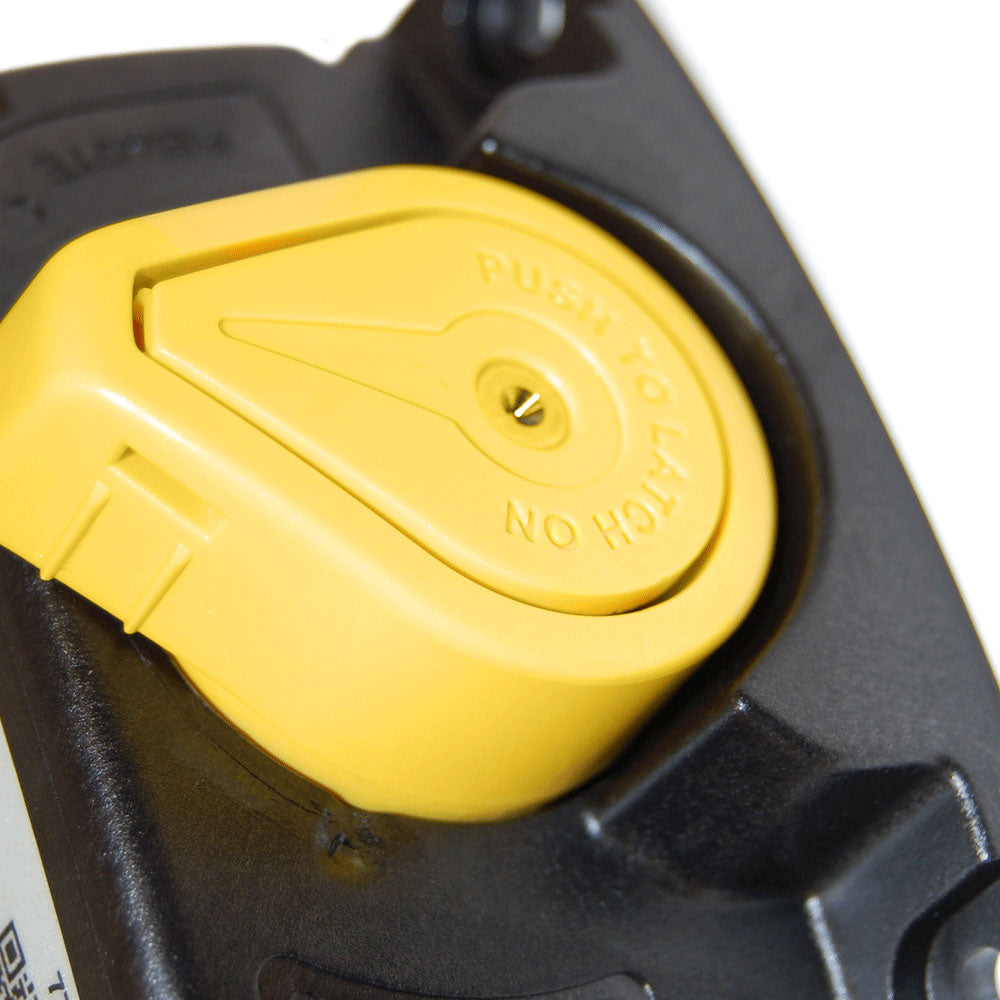

- Manual override knob provides an added level of safety allowing control with or without power and offering LOCKED OFF capability for servicing
- LED output to remotely indicate switch state - requires optional LED
- 3/8"-16 tin-plated copper studs for maximum conductivity and corrosion resistance
- 7/8" (22 mm) stud length accepts multiple cable terminals
- Label recesses for circuit identification
- Silver alloy contacts provide high reliability for switching live loads
Specifications:
- Control Circuit Connection: Deutsch DTM
- Nominal Voltage: 12VDC
- Coil Function: Bi-Stable
- Mounting: #10
- Amperage Operating Current Continous: 0mA
- Terminal Stud Torque: 140 in-lb (15.82 Nm)
- Continuous Rating: 500A
- Intermittent Rating: 700A (5 min)
- Cranking Rating 30 Seconds: 1450A DC
- Cable Size to Meet Ratings: 2x (4/0)
- Live Current Switching: 300A@12VDC
- Master Control Switch Capability: No
- Mechanical Endurance: 100,000 Cycles
- Terminal Ring Diameter Clearance: 1.18" (29.97 mm)
- Terminal Stud Length: 0.875" (22.23 mm)
- Terminal Stud Size: 3/8" - 16 (M10)
- Weight: 1.75lb (0.79 kg)
