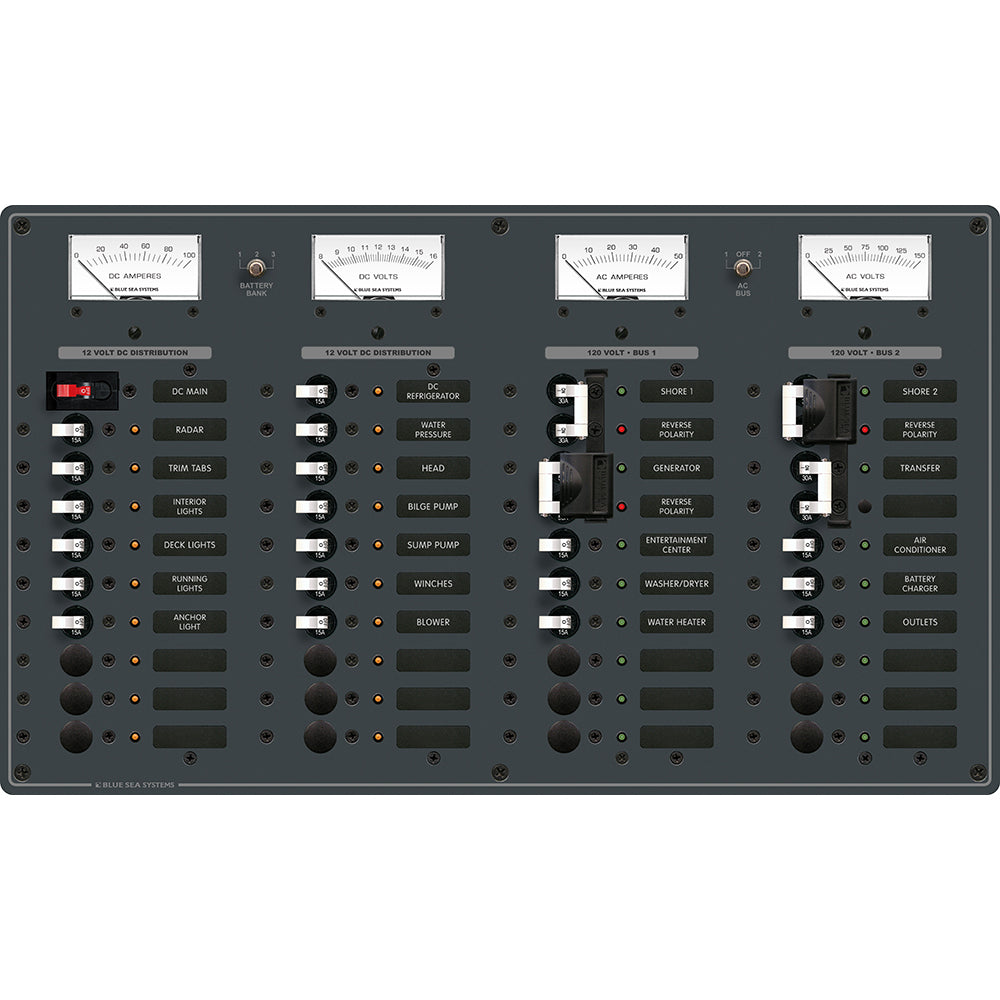

Blue Sea 8086 AC 3 Sources +12 Positions/DC Main +19 Position Toggle Circuit Breaker Panel - White Switches
- In stock, ready to ship
FREE Shipping in the 48 Contiguous States. Qualifying items are available to Alaska, Hawaii, Puerto Rico, Guam, Saipan & U.S. Territories.
Customers shipping outside the Lower 48 should select the shipping option that best fits their order at checkout. If additional shipping charges apply, we'll contact you before processing. Questions? Call, text, or WhatsApp 352-561-8443.
🏷️ 7% OFF with code POWER7
💗 Shop Pay Installments, Available at checkout.
✅ All major credit cards accepted
8086 AC 3 Sources +12 Positions/DC Main +19 Position Toggle Circuit Breaker Panel - White Switches
Features:
- Includes set of 30 common AC and 30 common DC labels
- All AC and DC buses installed, fully pre-wired
- Label backlighting pre-installed
- All LEDs installed
- Maximum panel Amperage
- 100 Amperes DC
- 50 Amperes AC
AC Features:
- Two separate AC load groups with transfer switch to combine into one load group
- Switch allows Ammeter and Voltmeter to read either AC load group
- Reverse polarity indicators on both AC load groups
- Ready for installation of optional 4031 AC Isolation Cover
- 9353, 0-150 Volt AC Voltmeter
- 9630, 0-50 Amp AC Ammeter
DC Features:
- 100 Amp C-Series circuit breaker provides main circuit protection and switching for DC branch circuits
- 8003, 8-16 Volt DC Voltmeter
- 8017, 0-100 Amp DC Ammeter
Specifications:
- AC Positions: Source Selectors +12
- DC Positions: Main +19
- 120 Volts AC
- 12 Volts DC
- (3) 30A - (1) 50A - (6) 15A AC Circuit Breakers
- (1) 100A - (13) 15A DC Circuit Breakers
*Combined AC/DC panels require a AC Insulating Cover to meet ABYC Standards
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Max Breaker Quantity = 12 AC / 19 DC | AC/DC = Both | Voltage = 120v/12v
