Jackery Manual Transfer Switch for HomePower 3600 Pro Max Generator Backup
- In stock, ready to ship
FREE Shipping in the 48 Contiguous States. Qualifying items are available to Alaska, Hawaii, Puerto Rico, Guam, Saipan & U.S. Territories.
Customers shipping outside the Lower 48 should select the shipping option that best fits their order at checkout. If additional shipping charges apply, we'll contact you before processing. Questions? Call, text, or WhatsApp 352-561-8443.
🏷️ 7% OFF with code POWER7
💗 Shop Pay Installments, Available at checkout.
✅ All major credit cards accepted
Factory Warranty: 5 Year
Jackery Manual Transfer Switch for HomePower 3600 Pro Max Generator Backup
Free shipping to the 48 states. We also ship to PR, HI, AK, VI, Guam, and Saipan — message us for a quote.
If you don’t see the power station brand or model you need, message us.
We can often create a private listing for you at a great price!
Warranty Information
Full factory warranty applies to all customers, including island locations.
The only exception is warranty shipping to and from island locations, which is not included.
We offer a low‑cost 5‑year Replacement Shipping Protection plan that covers those shipping costs.
SKU: 60-000000-US00586
Description

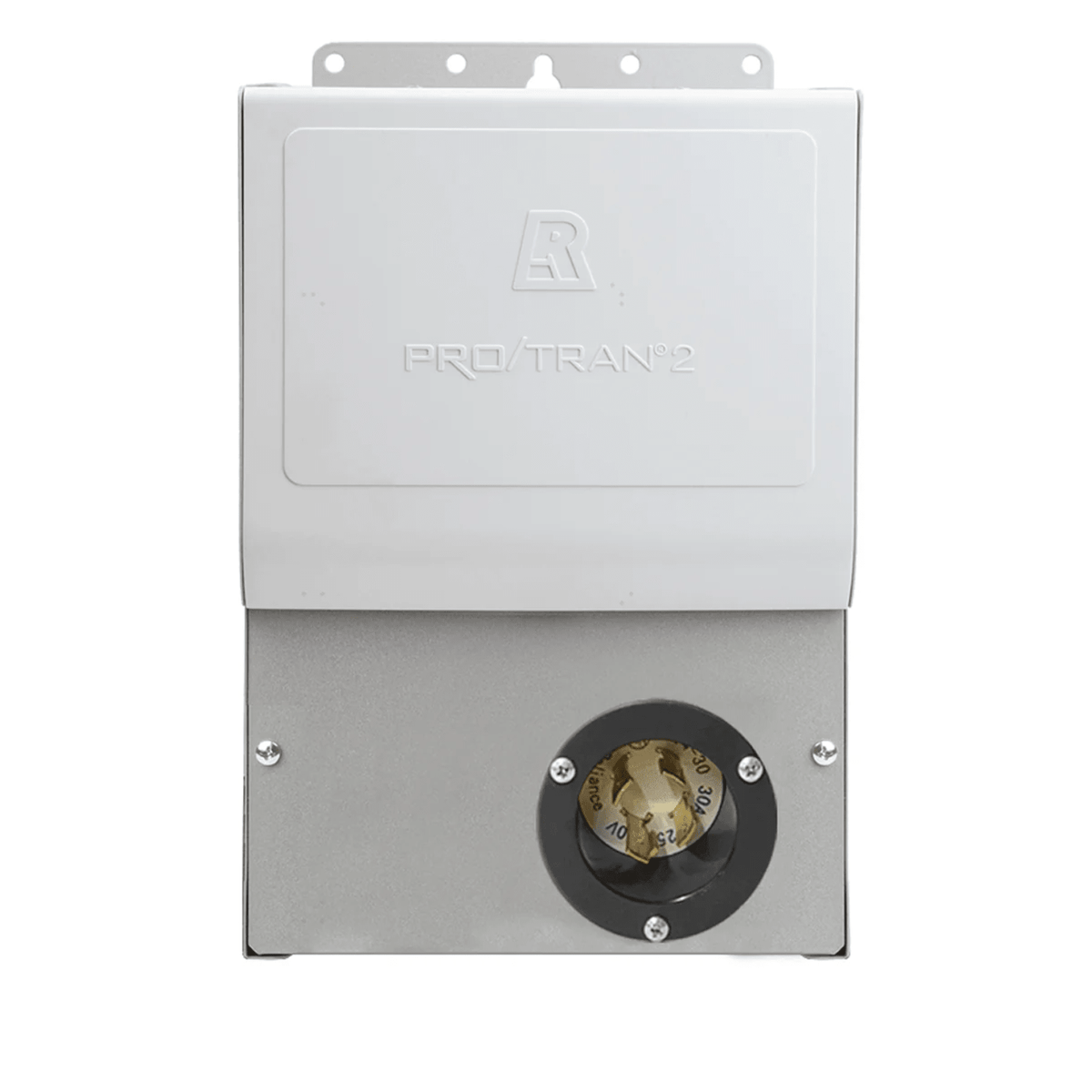

The Jackery Manual Transfer Switch for HomePower 3600 Pro Max is designed to provide controlled switching between utility power and generator power for connected household branch circuits.
Featuring double throw selector switches and individual circuit breaker protection, this transfer switch supports organized power management during outages.
Designed exclusively for the HomePower 3600 Pro Max, it offers flexible circuit configuration for compatible 120V and 240V applications, helping users manage connected electrical loads according to their installation requirements.
Key Benefits
- Safe Power Selection: Select utility LINE power or generator GEN power for connected branch circuits.
- Circuit Protection: Individual interchangeable circuit breakers protect branch circuits when operating on generator power.
- Flexible Configuration: Supports compatible 120V and 240V circuits with removable or installable handle ties.
- Load Monitoring: Compatible models with suffix A and C include analog wattmeters for monitoring generator load.
- Generator Compatibility: Designed for portable generators with a floating neutral configuration.
- Household Power Management: Supports a range of common household appliances according to their wattage requirements.
Product Overview
This manual transfer switch provides a practical way to select the power source supplying compatible household branch circuits.
Its double throw switching mechanism prevents generator power from feeding back into the utility supply and prevents utility power from feeding the generator.
Each transfer circuit features an interchangeable 1 inch circuit breaker. Positions A and B support breakers rated up to 30 amps, while the remaining positions support 15 amp or 20 amp breakers.
Adjacent selector switches can be paired using the included handle ties to accommodate compatible double pole 240V circuits or multi wire branch circuits. The configuration can also be adjusted for 120V only installations.
Features
- Manual switching between utility and generator power
- Double throw selector switch mechanism
- Individual interchangeable circuit breakers
- Support for 15 amp 20 amp and up to 30 amp breakers depending on position
- Flexible 120V and 240V circuit configuration
- Included handle ties for compatible circuit arrangements
- Analog wattmeters on applicable A and C models
- Compatible with branch circuits protected by AFCI or GFCI breakers, subject to appropriate protection arrangements
- Designed for portable generators with floating neutral configuration
- Exclusively suitable for the Jackery HomePower 3600 Pro Max
Ideal Applications
- Household backup power management during utility outages
- Switching compatible branch circuits between utility and generator power
- Managing selected household electrical loads
- Compatible 120V household circuit installations
- Compatible 240V and multi wire branch circuit configurations
What's in the Box
- Jackery manual transfer switch for HomePower 3600 Pro Max
- Handle ties for compatible circuit configurations
Final Verdict
The Jackery Manual Transfer Switch for HomePower 3600 Pro Max is a purpose designed accessory for managing selected household circuits between utility and generator power.
Its circuit breaker protection, flexible circuit configuration and load monitoring on applicable models make it a useful option for compatible backup power installations.
