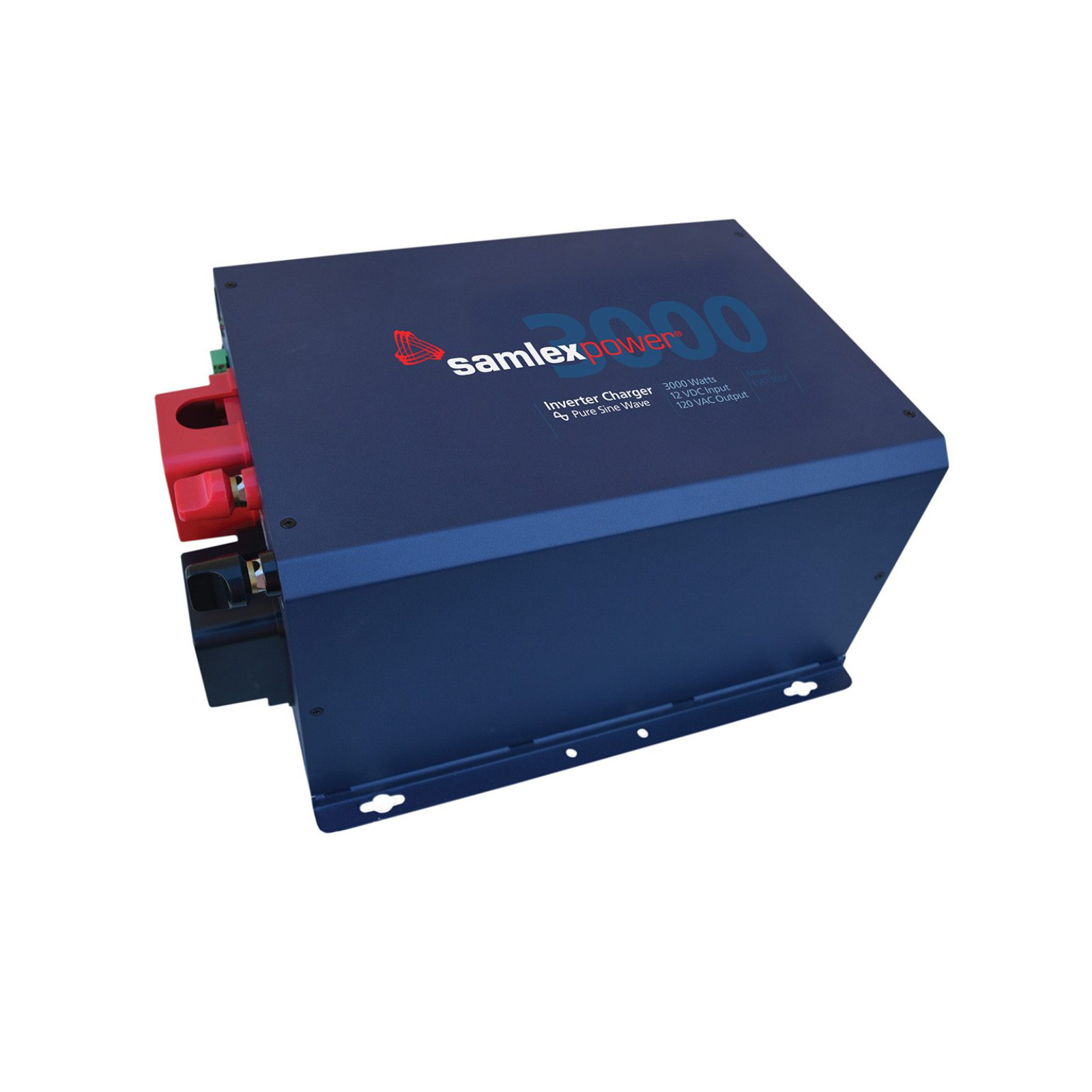

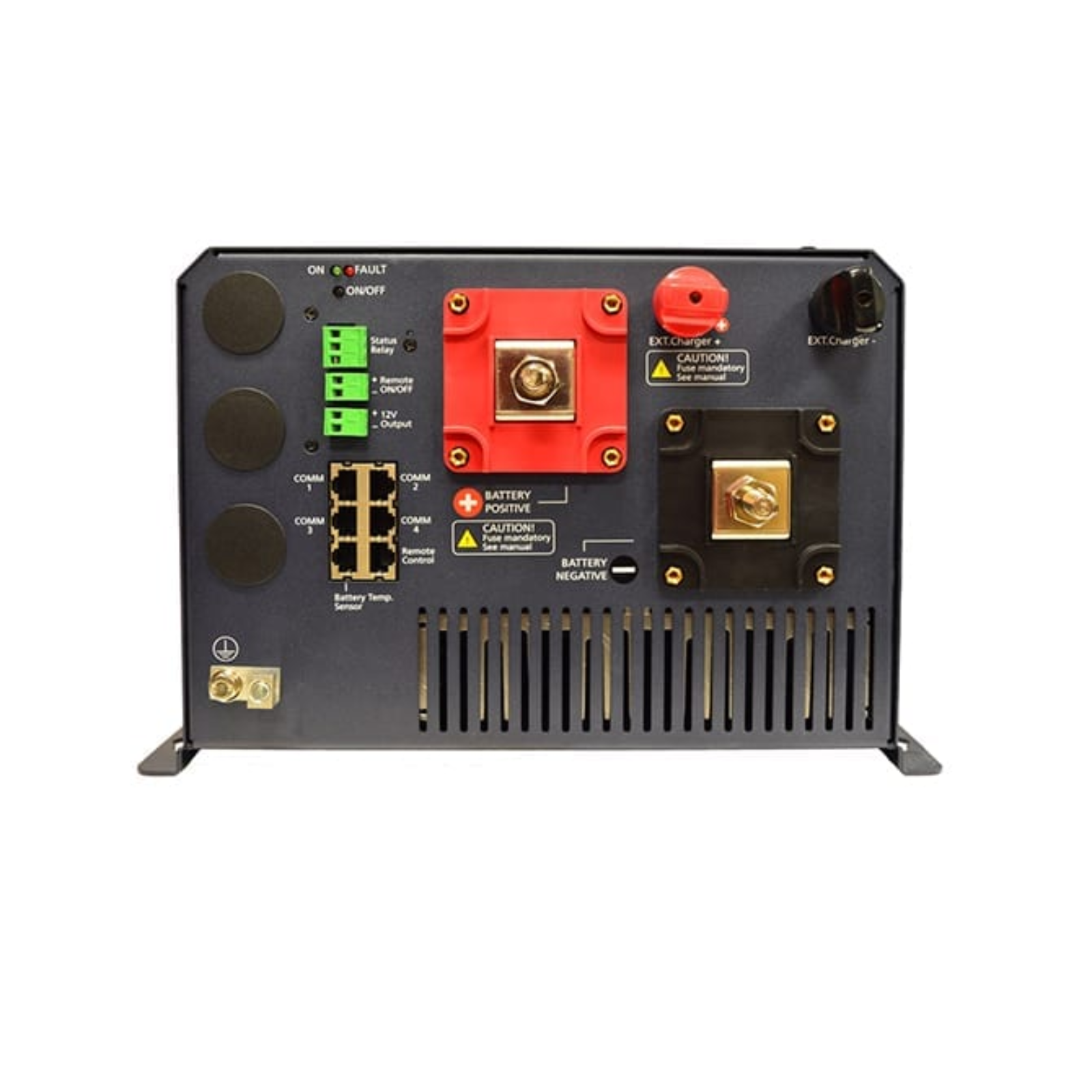

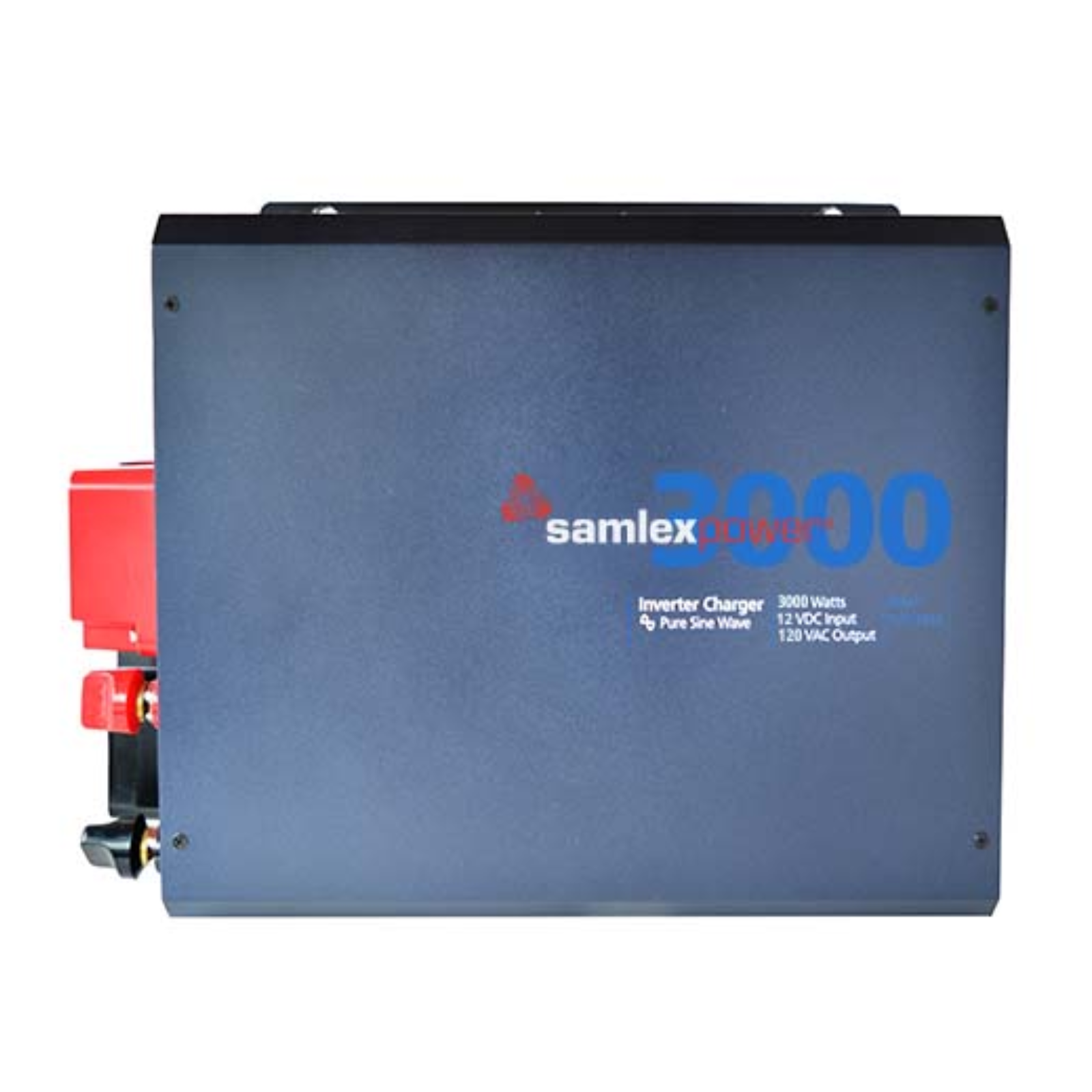

Samlex America 3000 Watt Pure Sine Inverter Charger EVO‑3012 Reliable Power

Samlex America 3000 Watt Pure Sine Inverter Charger EVO‑3012 Reliable Power

SKU: SAMEVO-3012

UPC: 622988079436

The Samlex America EVO‑3012 inverter/charger delivers advanced off‑grid power solutions for boats, RVs, cabins, and specialty vehicles.

Designed with state‑of‑the‑art technology, it provides pure sine wave AC output, adaptive battery charging, and seamless transfer relay functionality.

Operating at 165 million instructions per second, the EVO‑3012 ensures lightning‑fast response times and reliable performance.

With nine points of physical protection scanned up to 10,000 times per second, it safeguards against adverse conditions.

This unit integrates a 130 Amp 4‑stage battery charger and a 70 Amp transfer relay, making it a complete solution for backup, emergency, and alternative energy applications.

Key Benefits & Advanced Features

• Pure sine wave output for clean, stable AC power

• 3000 Watt continuous capacity with 9000 Watt surge

• Adaptive 4‑stage battery charger with equalization

• Zero transfer time from inverter to grid

• Dual AC inputs for grid and generator

• Programmable voltage thresholds for charging control

• Solar integration via external DC input

• Bullet‑proof intelligence with 9 protection points

• High surge capacity for demanding loads

• Fast load response at 165 MIPS

• Optional EVO‑RC remote with SD card data logging

• ETL safety listed to UL and CSA standards

• FCC Part 15(B) compliance for EMI/EMC

• RoHS compliant environmentally safe design

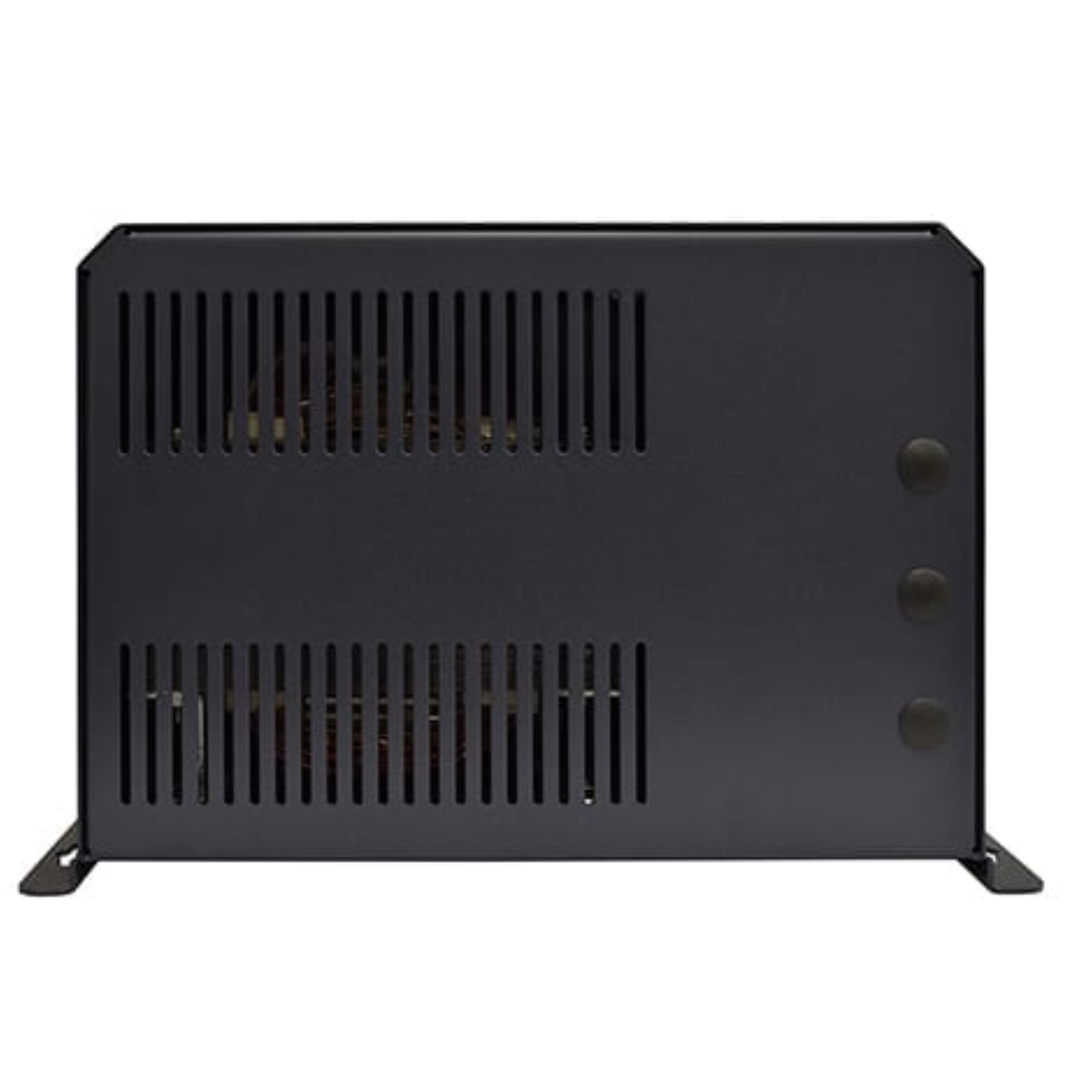

• Efficient cooling system with 5 temperature sensors

Detailed Technical Specifications

• Input: 12 VDC

• Output: 120 VAC

• Continuous Power: 3000 Watts

• Surge Capacity: 9000 Watts

• Transfer Relay: 70 Amp

• Battery Charger: 130 Amp, 3/4 stage

• Frequency: 50/60 Hz

• Outlets: Hardwired

• Fuse: External

• Remote Control: EVO‑RC optional

• Dimensions: 325 × 426 × 207 mm

• Weight: 29 kg (64 lbs)

• Safety: ETL listed to UL 1741, UL 458, CSA C22.2 No. 107.1‑01

• EMI/EMC: FCC Part 15(B), Class A

• Compliance: RoHS

Ideal Applications

Perfect for RVs, boats, cabins, specialty vehicles, off‑grid solar systems, and emergency backup power.

Real‑World Performance & User Experiences

Users report seamless transitions between grid and inverter, reliable surge handling, and extended battery life due to adaptive charging.

Comparison with Similar Generators

Compared to standard inverters, the EVO‑3012 offers faster transfer times, higher surge capacity, and integrated solar compatibility.

Step‑by‑Step Setup Guide

1. Connect DC input to 12 V battery bank.

2. Wire AC inputs for grid and generator.

3. Configure voltage/frequency thresholds.

4. Connect optional EVO‑RC remote.

5. Test transfer and charging functions.

Maintenance Schedule & Tips

• Inspect connections monthly.

• Clean cooling vents quarterly.

• Initiate equalization charging manually as needed.

• Update firmware when available.

Long‑Term Cost of Ownership Analysis

Efficient charging reduces battery replacement costs. High surge capacity allows smaller inverter sizing, lowering upfront investment.

Compliance and Handling Disclaimer

ETL safety listed to UL and CSA standards. FCC and RoHS compliant. Follow installation guidelines to ensure safe operation.

Warranty

2‑year limited warranty from Samlex America.

Frequently Asked Questions

Q: Can it integrate with solar? Yes, via external DC input.

Q: Is the remote included? No, EVO‑RC sold separately.

Q: Transfer time? Less than 16 ms grid to inverter, zero inverter to grid.

Final Verdict

The Samlex EVO‑3012 is a robust, intelligent inverter/charger ideal for demanding off‑grid and backup applications. Safe to list on eBay and Shopify.
