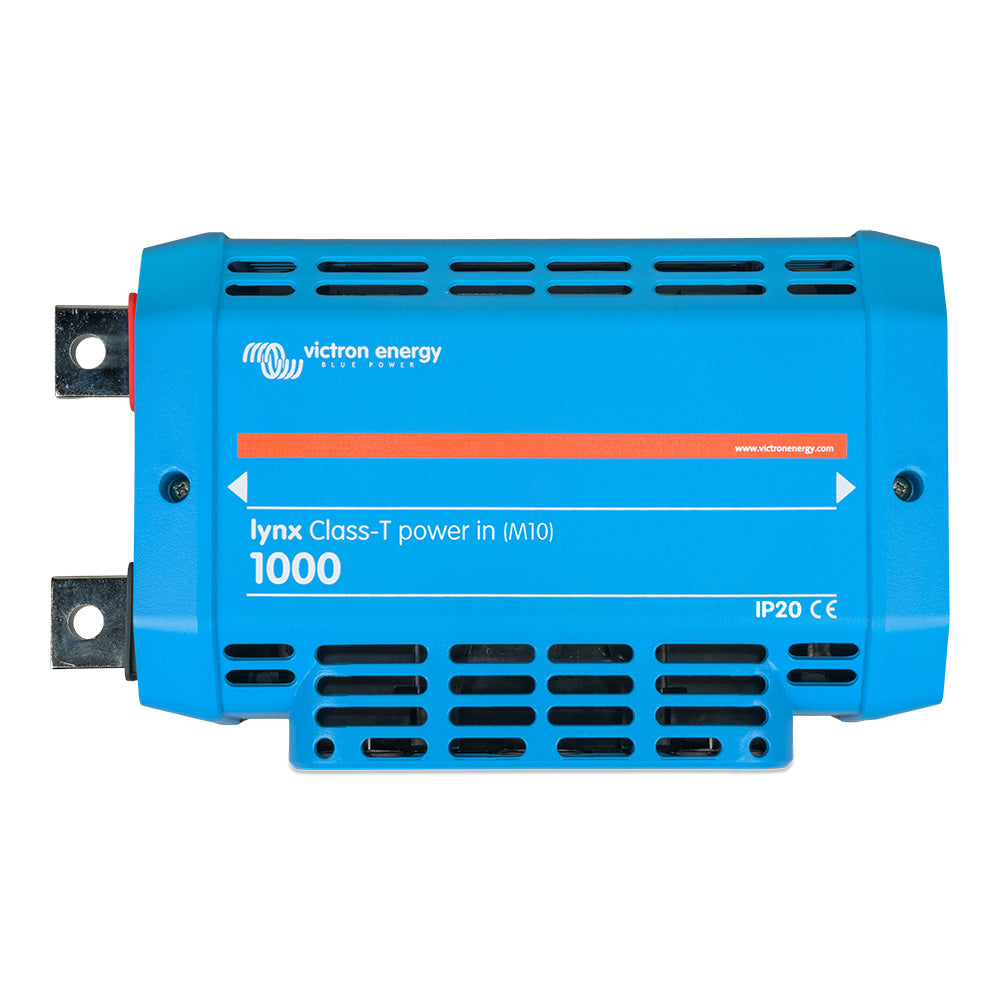

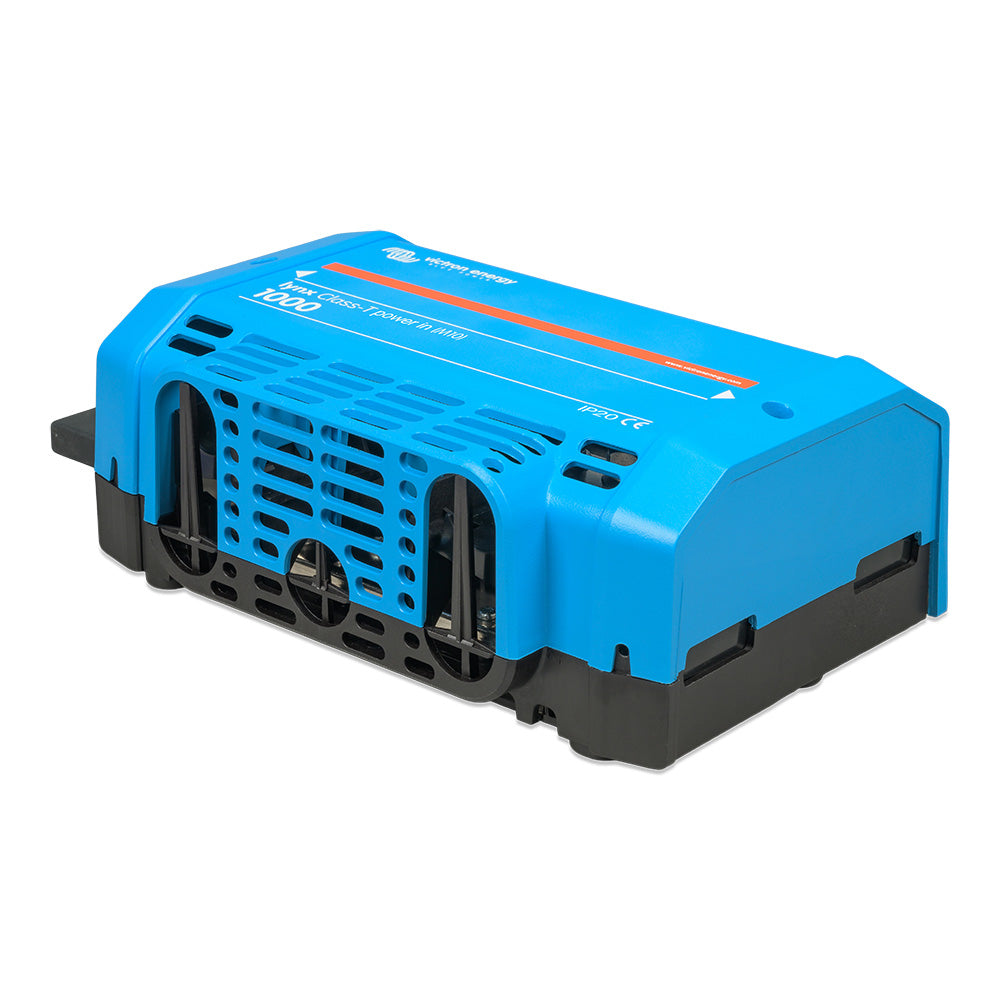

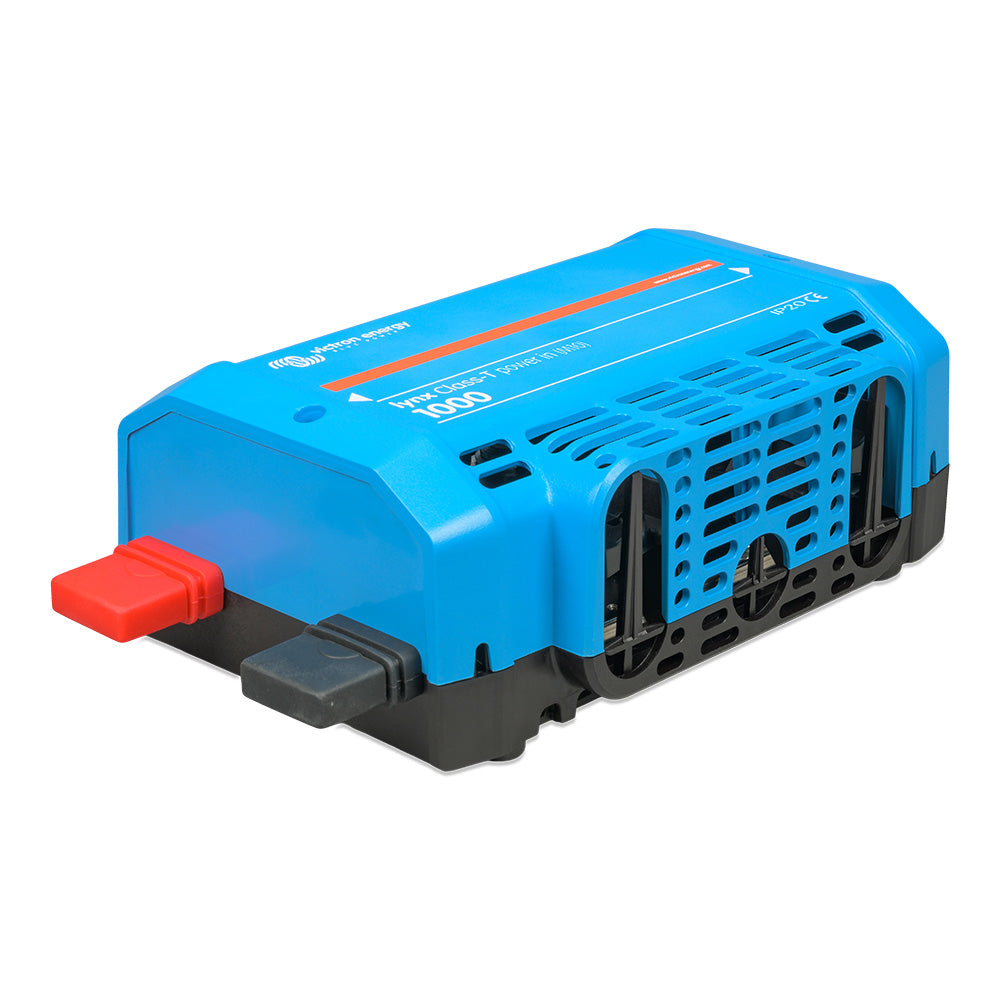

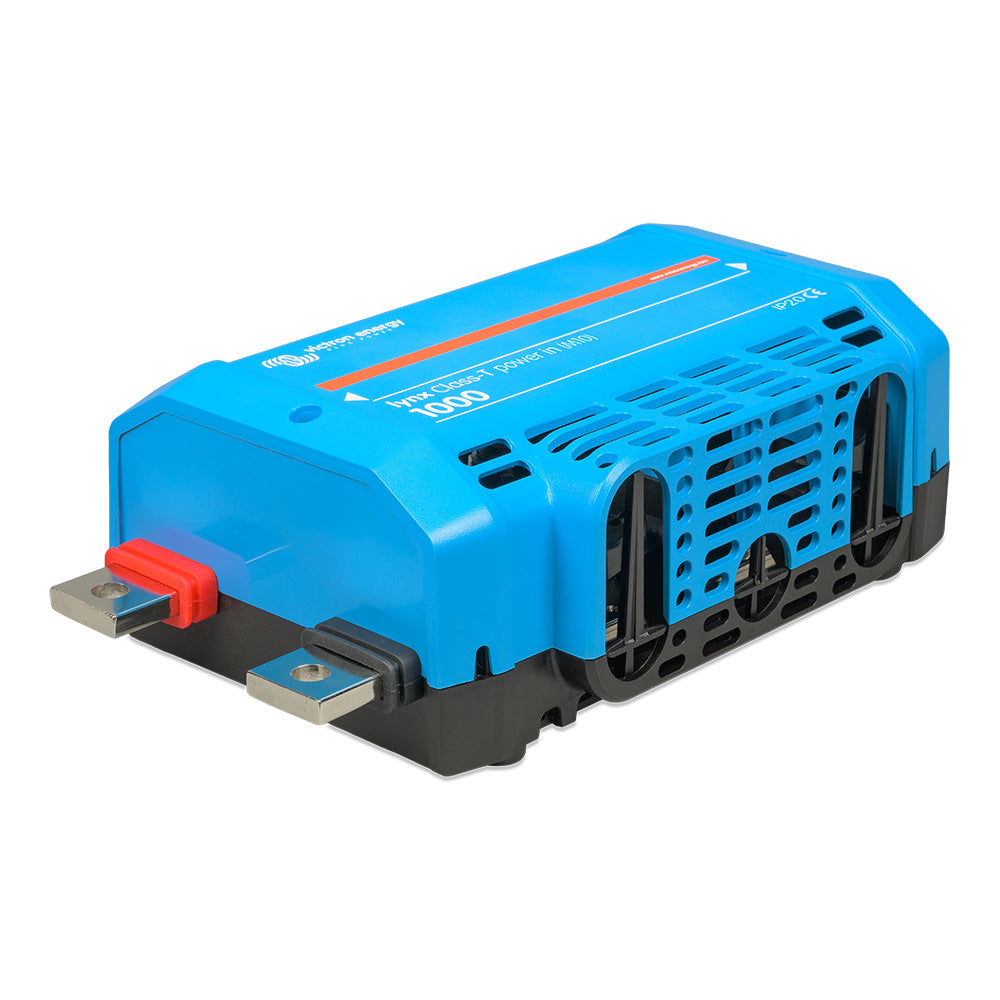

Lynx Power-In Class-T M10 Terminals
The Lynx Class-T Power In connects and fuses up to two strings of lithium batteries. It features a positive and negative busbar, connections for two Class-T fuses, and a connection to ground the DC system. The Class T-fuses, are available in 225A, 250A, 350A, and 400A (must be purchased separately).
For installations using three or more strings of lithium batteries, use multiple Lynx Class-T modules. As a core component of the Lynx Distribution system, the Lynx Class-T seamlessly integrates with all other M10 Lynx products.
The Lynx Distribution System
The Lynx Distribution System is a modular busbar system that incorporates DC connections, distribution, fusing, and battery monitoring and/or lithium battery management.
The Lynx Distribution System Consists of the Following Parts
Lynx Power In
A positive and negative busbar with four batteries or DC equipment connections.
Lynx Distributor
A positive and negative busbar with four fused connections for batteries or DC equipment and fuse monitoring is available in two versions.
Lynx Shunt VE.Can
A positive busbar with a space for a main system fuse and a negative busbar with a shunt for battery monitoring. It has VE.Can communication for monitoring and setup with a GX device.
Lynx Smart BMS
For use together with Victron Energy Smart Lithium batteries. It contains a positive busbar with a contactor driven by a battery management system (BMS) and a negative busbar with a shunt for battery monitoring.
It has Bluetooth communication for monitoring and setup via the VictronConnect App and VE.Can communication for monitoring with a GX device and the VRM portal. Available as a 1000A model with M10 busbars.
Specifications
Power:
- Voltage Range: 9 - 60Vdc
- Current Rating: 1000Adc continuous
- Connections: M10
- Busbar: 3/8”
Physical:
- Enclosure Material: ABS
- Enclosure Dimensions (H x W x D): 279 x 169 x 97mm
- Unit Weight: 2.1 kg
- Busbar Material: Tinned copper
- Busbar Dimensions (H x W): 8 x 30mm
Environmental:
- Operating Temperature Range: -40°C to +60°
- Storage Temperature Range: -40°C to +60°
- Humidity: Max. 95% (non-condensing)
- Protection Class: IP20
Fuse Type = Class T
