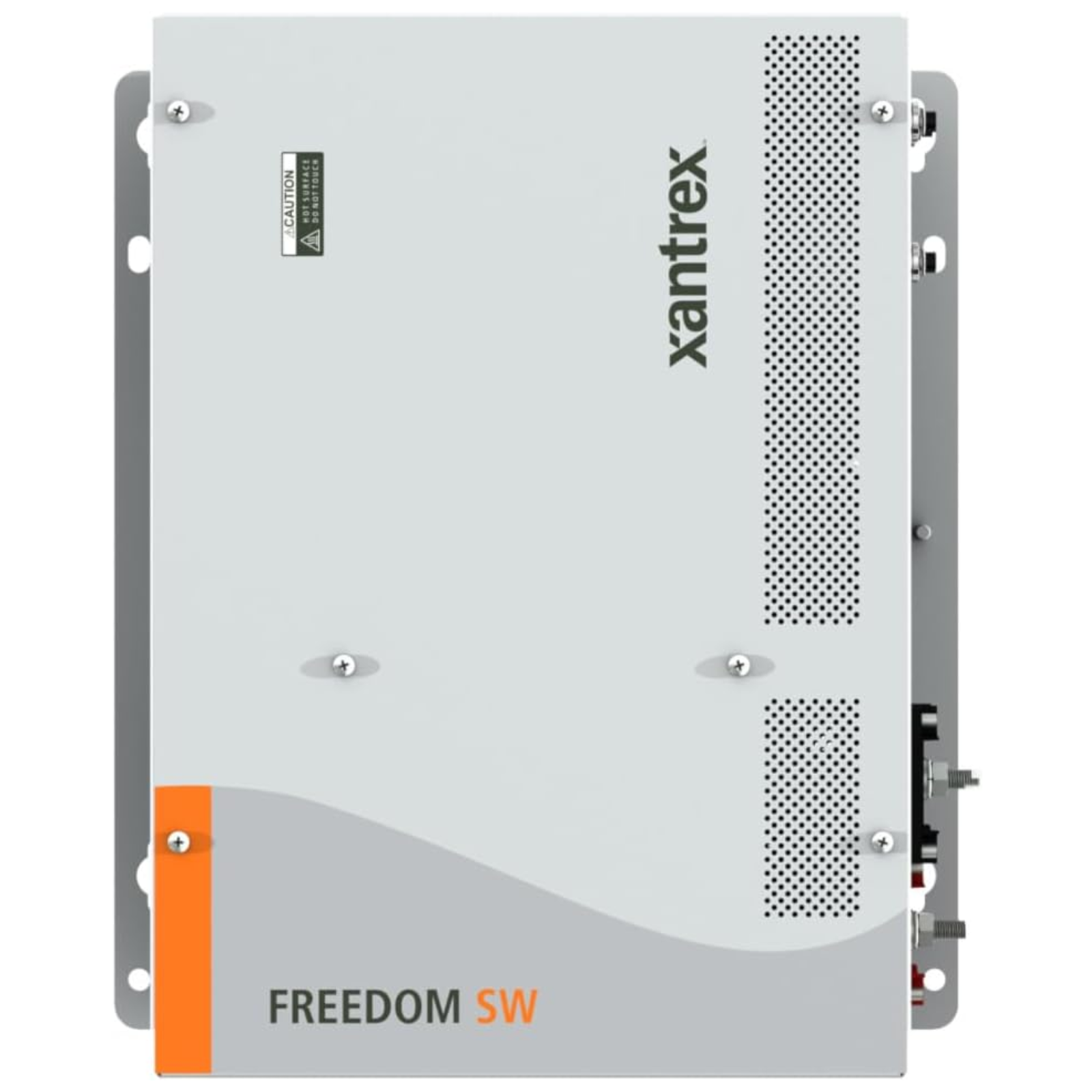

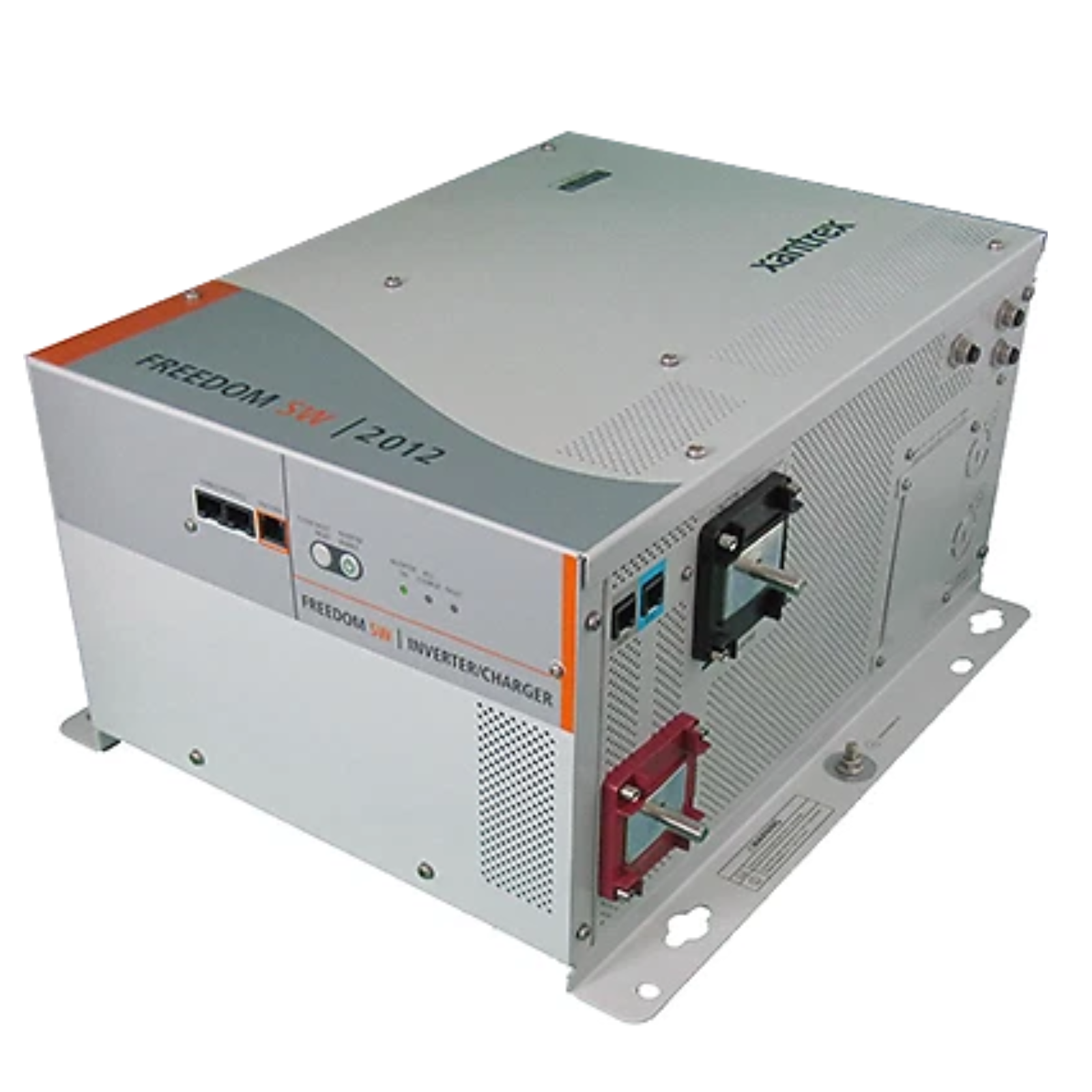

Xantrex Freedom SW 2000 Watt Pure Sine Inverter Charger Reliable Power 815-2012

Xantrex Freedom SW 2000 Watt Pure Sine Inverter Charger Reliable Power 815-2012

SKU: XAN815-2012

UPC: 715535917036

The Xantrex Freedom SW 2000 inverter/charger is a powerful and versatile solution for reliable AC power in mobile and off‑grid applications.

Delivering a continuous 2000W output with true sine wave technology, it ensures safe operation for sensitive electronics and appliances.

This unit integrates a 100A battery charger, supporting multiple battery chemistries including LiFePO4, AGM, Gel, and Flooded.

Designed for RVs, boats, and commercial vehicles, the Freedom SW 2000 features a built‑in transfer switch that automatically shifts between inverter power and incoming AC power.

Its advanced generator support mode supplements generator capacity when AC loads exceed limits, ensuring uninterrupted performance. With wide operating temperature tolerance from ‑4°F to 140°F, it adapts to diverse climates.

Compact, rugged, and efficient, the Freedom SW 2000 is engineered to deliver dependable power while reducing generator reliance.

Its second‑generation design incorporates faster AC transfer detection, improved reliability, and enhanced charging capabilities.

Key Benefits & Advanced Features

• True sine wave output for sensitive electronics

• 2000W continuous power with peak output current of 55A

• 100A battery charger supporting multiple battery types

• Built‑in transfer switch for seamless AC switching

• Generator support mode supplements generator capacity

• Fast AC transfer detection under 10 milliseconds

• Temperature compensated charging for climate adaptability

• Wide operating temperature range from ‑20°C to 60°C

• Compatible with LiFePO4 batteries

• Low voltage charging capability for deeply discharged batteries

• Single phase AC connections for easy integration

• Compact design for space‑saving installation

• Rugged build quality for demanding environments

• Second generation enhancements for improved performance

• Versatile applications across RV, marine, and trucking

Detailed Technical Specifications

• Continuous Output Power: 2000W at 40°C

• Peak Output Current: 55A

• Output Frequency: 60Hz

• Output Voltage: 120VAC

• Output Waveform: True sine wave

• AC Connections: Single phase in/out

• Battery Charger Capacity: 100A

• Compatible Battery Types: LiFePO4, Flooded, Gel, AGM

• Operating Temperature: ‑4°F to 140°F (‑20°C to 60°C)

• Storage Temperature: ‑40°C to 70°C

• No Load Power Draw: 3A DC

• Dimensions: 7.75" H × 13.5" W × 15.25" L

• Weight: 60.5 lbs

• Transfer Switch: Built‑in automatic

• Certifications: CSA, UL458

Ideal Applications

• Recreational vehicles

• Marine vessels

• Commercial trucks

• Off‑grid cabins

• Backup power systems

Real‑World Performance & User Experiences

Users highlight smooth operation with sensitive electronics, reliable generator support, and efficient battery charging even in extreme climates.

Comparison with Similar Generators

Compared to Magnum MS2012, the Freedom SW 2000 offers faster AC transfer detection and generator support mode, enhancing reliability.

Step‑by‑Step Setup Guide

1. Mount unit in ventilated compartment

2. Connect AC input/output wiring

3. Connect 12V battery bank

4. Configure charger settings

5. Test inverter and transfer switch

6. Connect optional remote panel

Maintenance Schedule & Tips

• Inspect wiring monthly

• Clean ventilation openings quarterly

• Test transfer switch periodically

• Update firmware annually

Long‑Term Cost of Ownership Analysis

Efficient charging reduces generator fuel costs. Rugged design minimizes replacement expenses.

Compliance and Handling Disclaimer

Follow CSA/UL installation codes. Use qualified personnel for installation.

Warranty

3‑year limited warranty from Xantrex.

Frequently Asked Questions

Q: Can it power sensitive electronics? Yes, with true sine wave output.

Q: Is it lithium‑ready? Yes, fully compatible with LiFePO4.

Q: Does it support generator integration? Yes, with generator support mode.

Final Verdict

The Xantrex Freedom SW 2000 inverter/charger is a reliable, efficient, and versatile solution for RV, marine, and commercial applications. Safe to list on eBay with no recalls or restrictions.
