Description

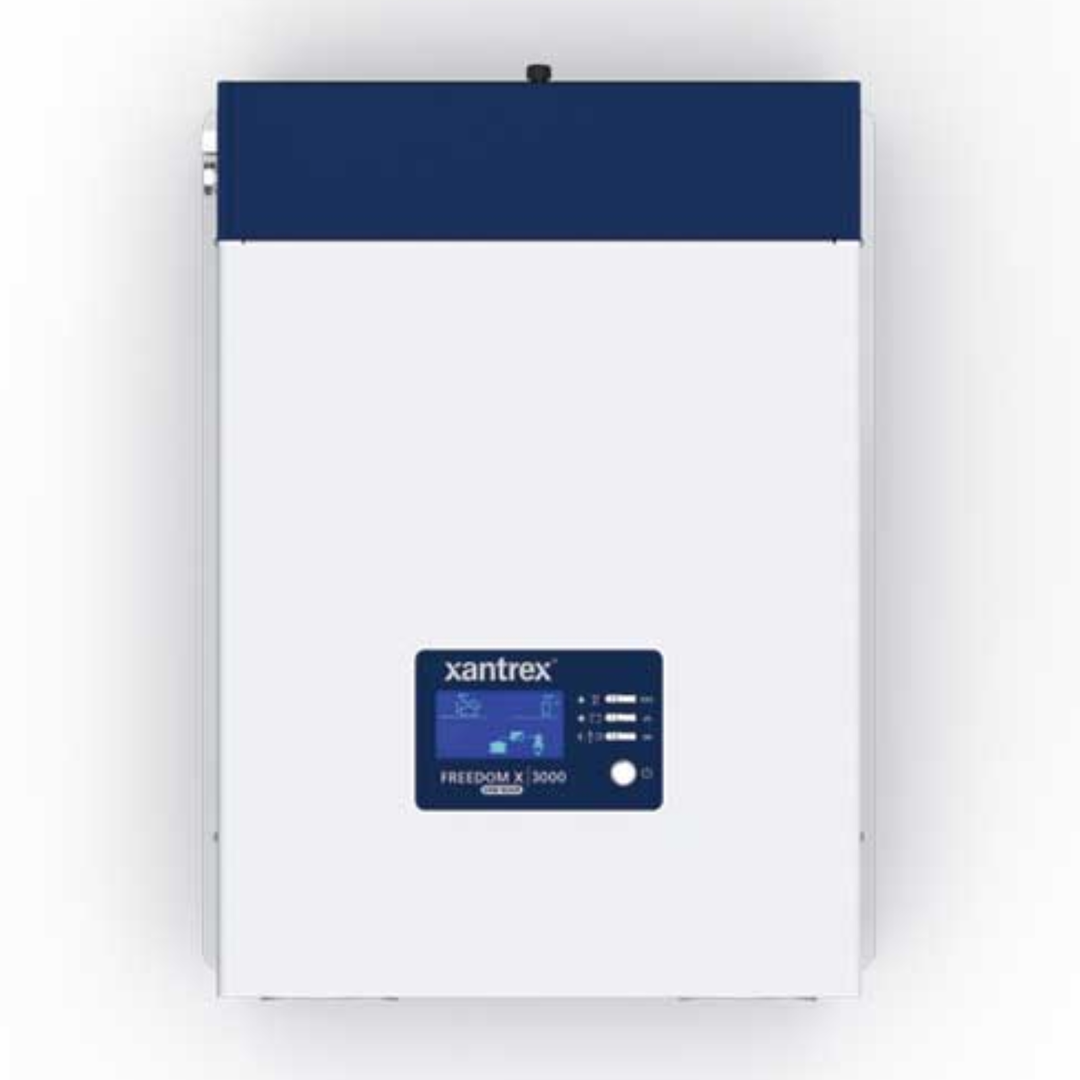

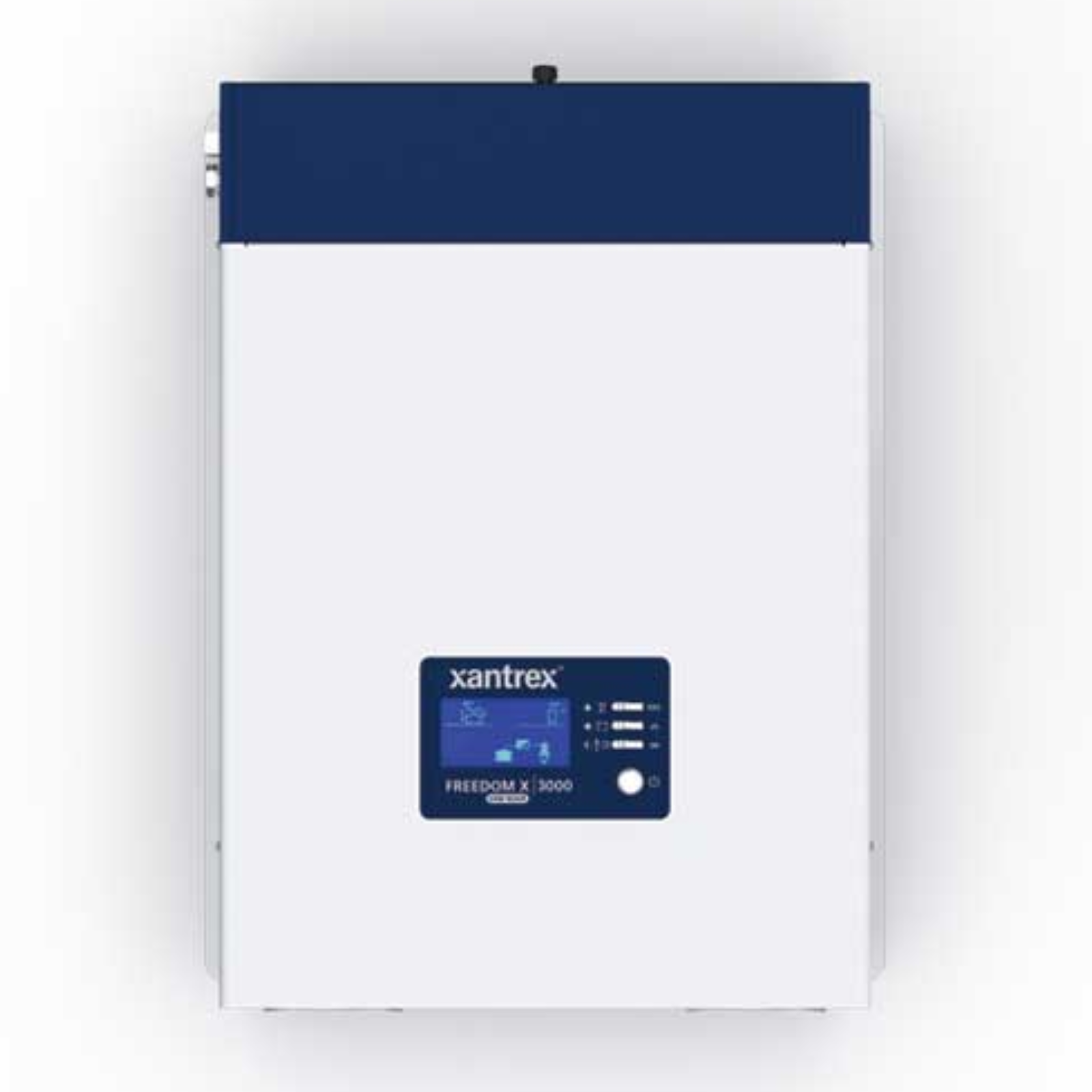

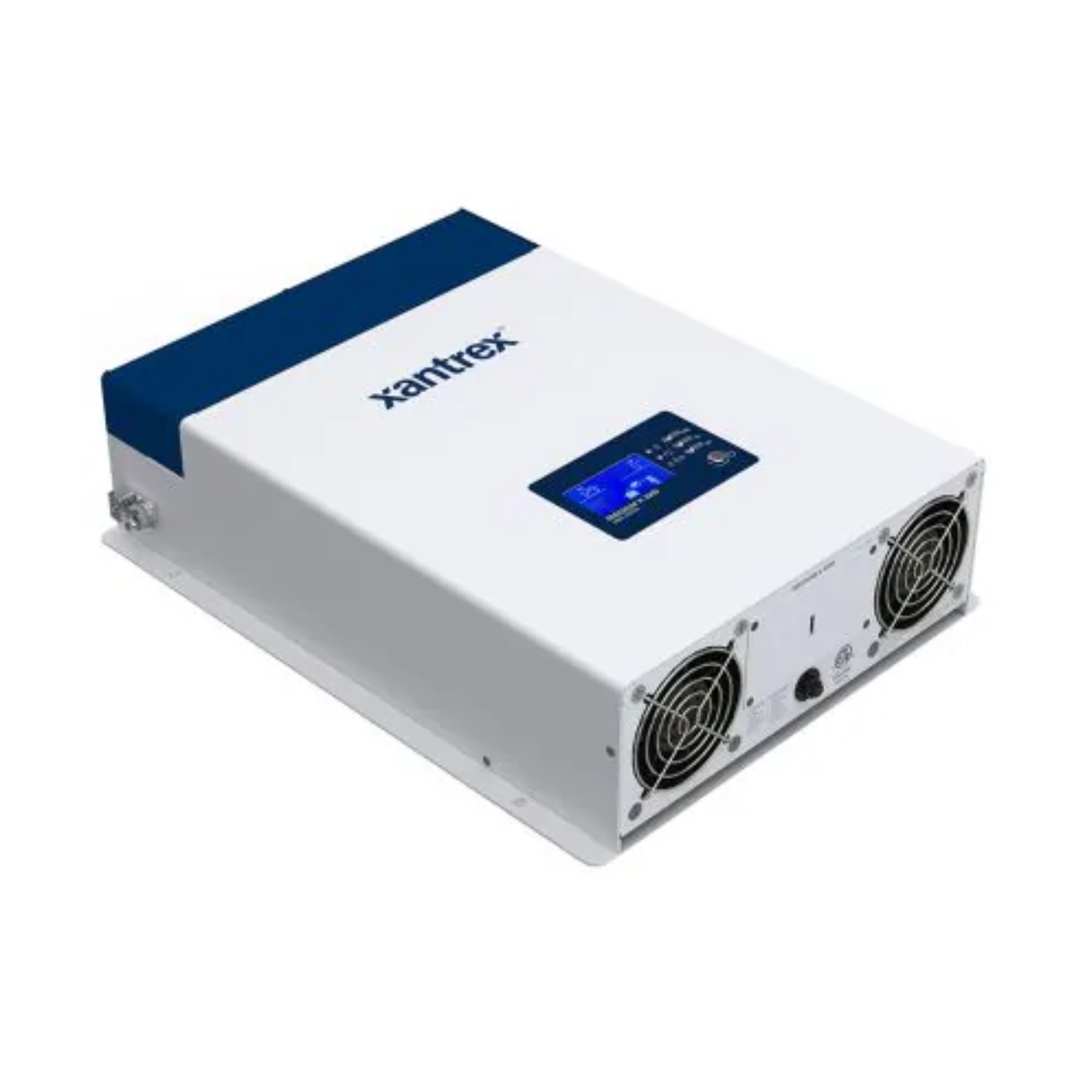

Xantrex Freedom X 3000 Watt Pure Sine Inverter Reliable AC Power 817-3000
SKU: XAN817-3000
UPC: 715535901509
The Xantrex Freedom X 3000 inverter delivers premium performance in a compact, lightweight design.
It provides up to 3000 watts of continuous pure sine wave AC power from a 12 VDC battery bank. This inverter is engineered to handle demanding loads such as microwave ovens, televisions, Blu‑ray players, and power tools.
With its extended 5‑second high‑surge capability, it can start full‑size residential refrigerators and other hard‑to‑start appliances.
The Freedom X 3000 features a built‑in 30 Amp transfer switch that automatically transfers between inverter power and shore power, ensuring uninterrupted electricity at boat docks, campsites, or RV parks.
If shore power is interrupted, the inverter instantly supplies utility‑grade AC power to connected loads.
Comprehensive protection features safeguard batteries and equipment, including selectable low battery shutdown voltage, shutdown delay timer, power save mode, and low battery alarms.
Configurable AC transfer speed, output frequency, and voltage make it versatile for multiple applications.
Key Benefits & Advanced Features
-
3000 Watt continuous output
-
6000 Watt surge capacity for 5 seconds
-
Pure sine wave output for sensitive electronics
-
Built‑in 30 Amp transfer switch
-
Automatic shore power transfer
-
Selectable low battery shutdown
-
Shutdown delay timer
-
Power save mode for efficiency
-
Low battery voltage alarm
-
Configurable AC transfer speed
-
Configurable output frequency
-
Configurable output voltage
-
Compact lightweight design
-
Comprehensive built‑in protection
-
Versatile applications for RVs, boats, and cabins
Detailed Technical Specifications
-
Input: 12 VDC
-
Output Voltage: 120 VAC, 60 Hz
-
Continuous Power: 3000 W (25 A)
-
Surge Power: 6000 W (50 A), 5 seconds
-
Output Waveform: Pure sine wave
-
Transfer Relay: 30 A
-
Dimensions: 390 × 275 × 102 mm
-
Weight: 7.7 kg (17 lbs)
-
Shipping Weight: 9.1 kg (20 lbs)
-
Warranty: 2 years
Ideal Applications
RVs, boats, cabins, campsites, and backup power for residential appliances.
Real‑World Performance & User Experiences
Users report reliable performance with sensitive electronics, seamless shore power transfer, and strong surge handling for refrigerators and power tools.
Comparison with Similar Generators
Compared to standard inverters, the Freedom X 3000 offers higher surge capacity, built‑in transfer switch, and advanced protection features.
Step‑by‑Step Setup Guide
-
Connect to 12 VDC battery bank.
-
Wire AC input for shore power.
-
Configure output frequency and voltage.
-
Test transfer switch operation.
-
Connect appliances and verify performance.
Maintenance Schedule & Tips
-
Inspect connections monthly.
-
Keep ventilation clear.
-
Test alarms quarterly.
-
Update firmware when available.
Long‑Term Cost of Ownership Analysis
Efficient design reduces battery wear and replacement costs. Built‑in transfer switch eliminates need for external hardware.
Compliance and Handling Disclaimer
Meets stringent safety standards. Follow installation guidelines for safe operation.
Warranty
2‑year limited warranty.
Frequently Asked Questions
Q: Can it run a refrigerator? Yes, with surge capacity.
Q: Does it include a transfer switch? Yes, 30 Amp built‑in.
Q: Is it safe for sensitive electronics? Yes, pure sine wave output.
Final Verdict
The Xantrex Freedom X 3000 is a reliable, versatile inverter ideal for RVs, boats, cabins, and backup power. Safe to list on eBay and Shopify.
