Description

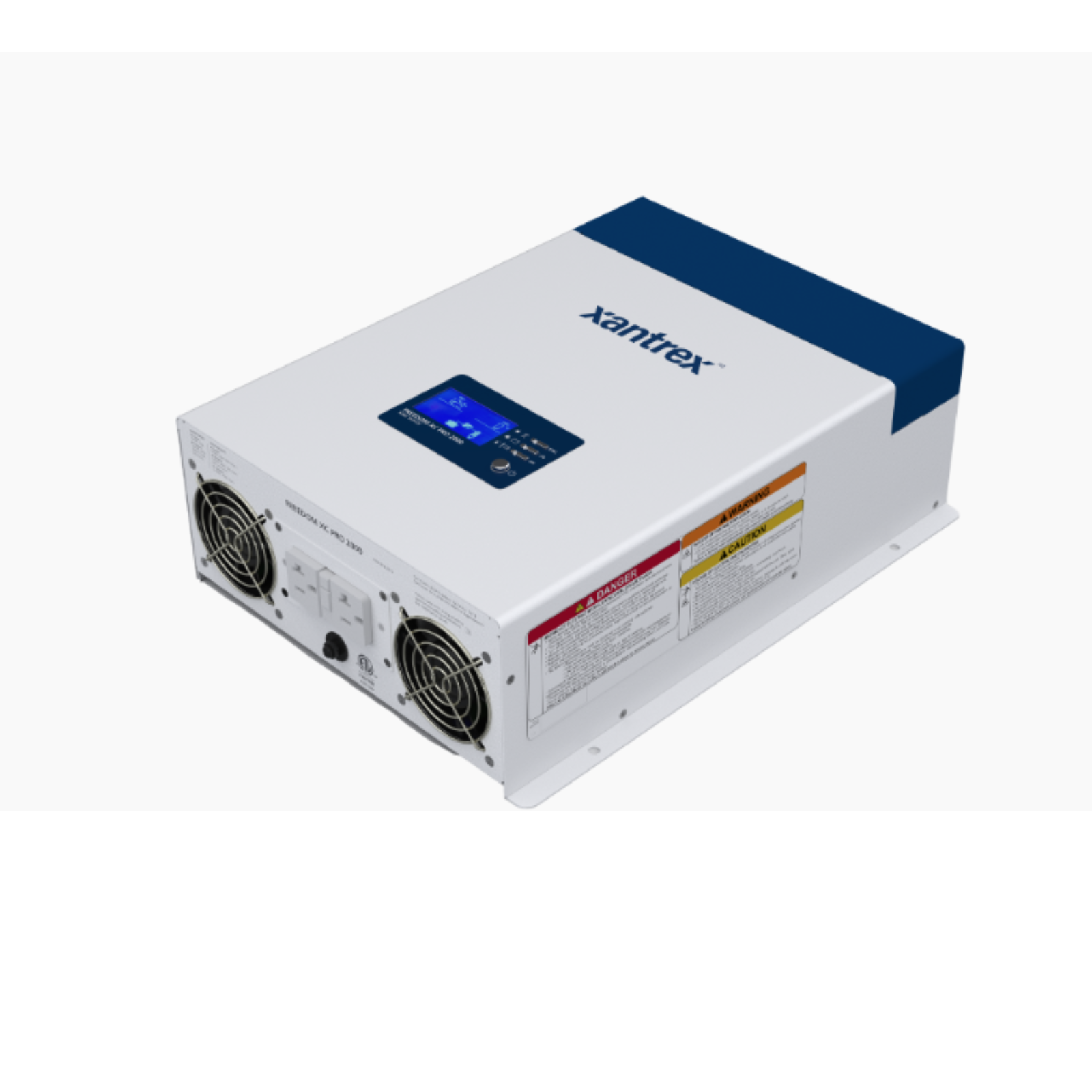

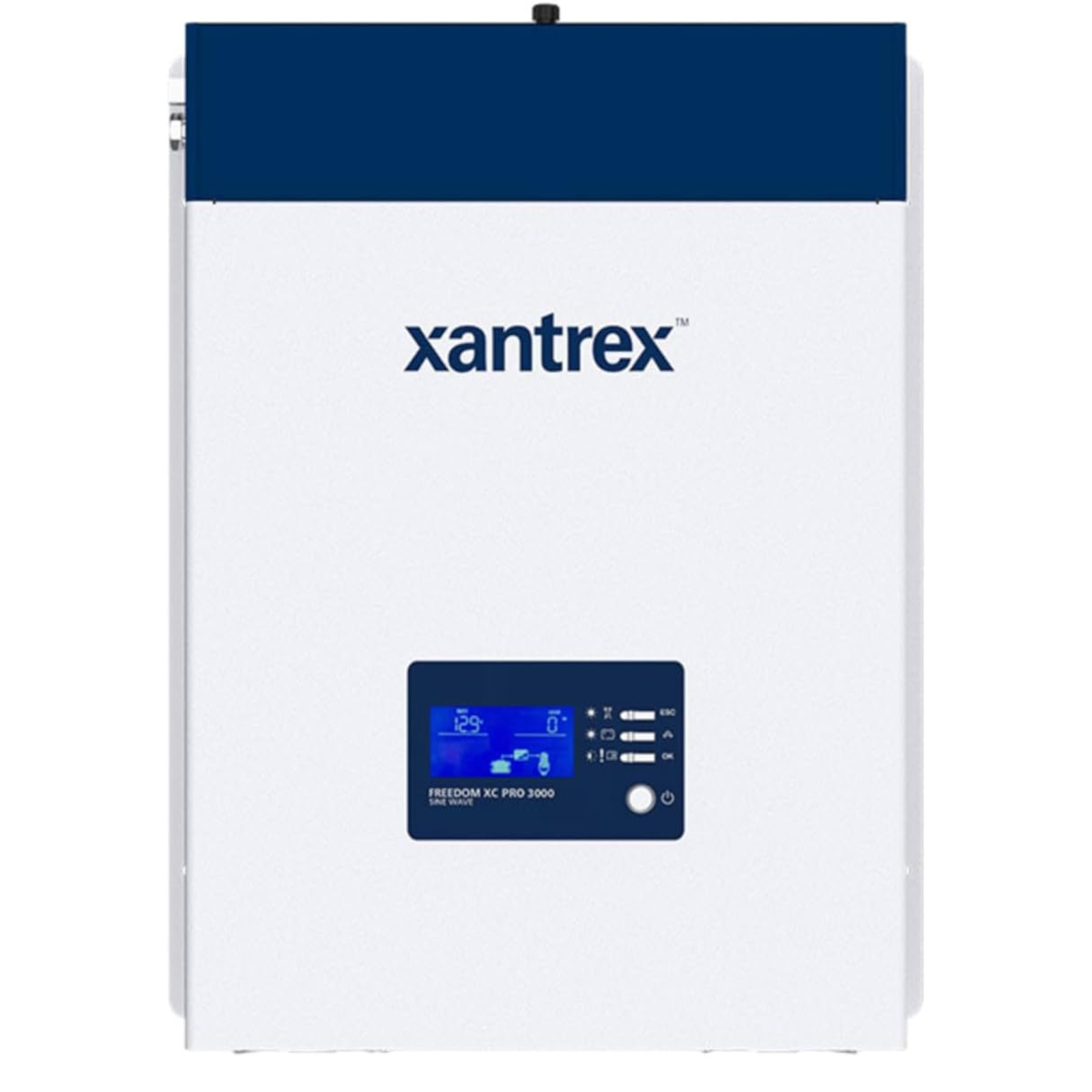

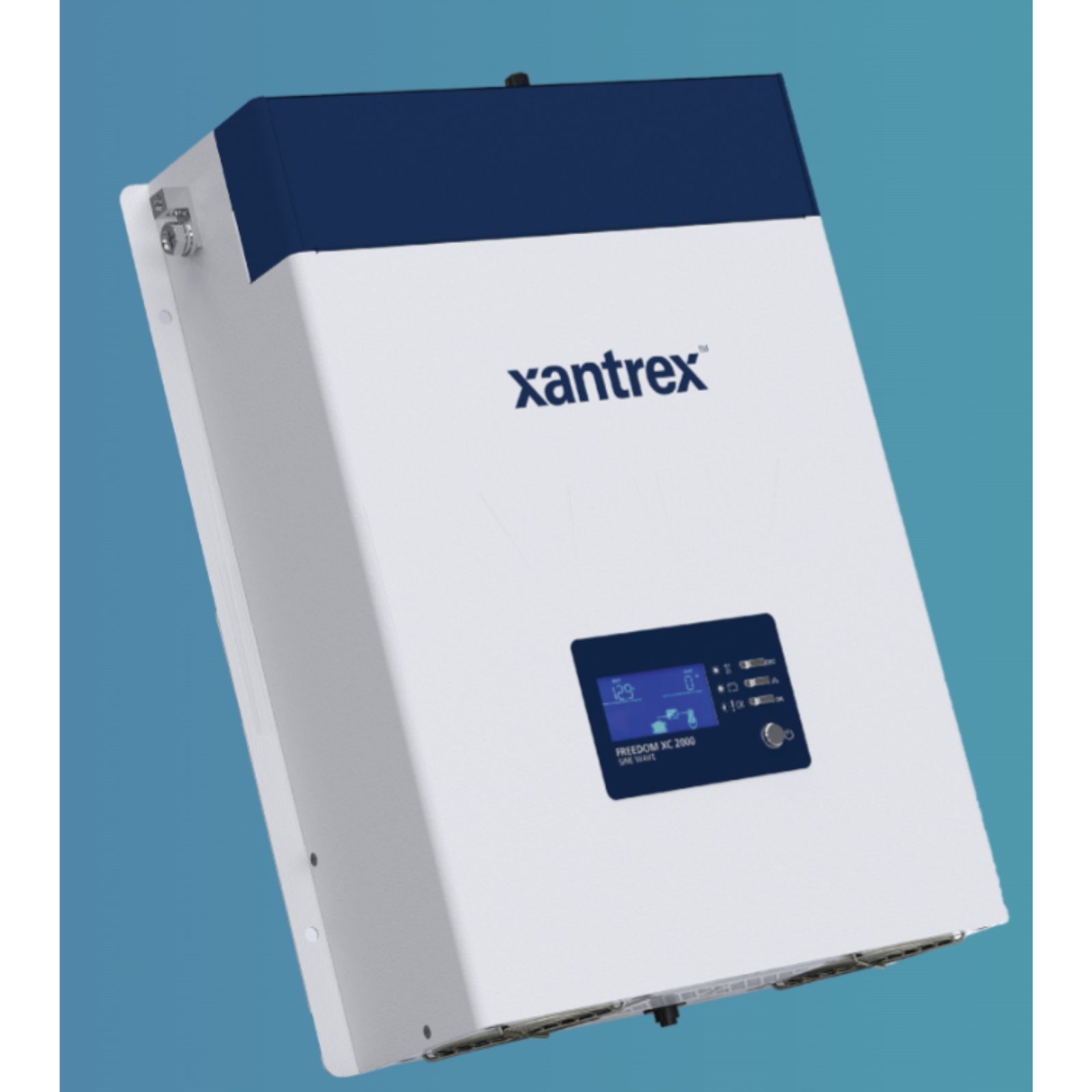

Xantrex Freedom XC Pro 3000W Inverter Charger 150A True Sine Wave 818-3010
SKU: XAN818-3010
UPC: 715535905767
The Xantrex Freedom XC Pro 3000 inverter/charger delivers reliable AC power in demanding environments.
Designed for RVs, boats, trucks, and specialty vehicles, it combines a powerful 3000W true sine wave inverter with a 150A battery charger and built‑in transfer switch.
This model supports advanced communication protocols including RV‑C, NMEA 2000, and J1939, ensuring seamless integration with modern monitoring systems.
Its extended surge rating allows operation of heavy loads such as air conditioners, microwaves, and compressors.
The unit is compact and lightweight, making installation easier in tight spaces. It can charge lithium batteries and even recover dead batteries down to 0 VDC.
Bluetooth connectivity via the optional remote panel enables convenient monitoring and configuration.
Operating temperature range from ‑4°F to 104°F ensures dependable performance in diverse climates. Quick‑connect AC terminals simplify installation, reducing setup time.
This inverter/charger is engineered for durability, efficiency, and professional‑grade performance.
It is ideal for users who demand consistent power delivery in mobile or off‑grid applications.
Key Benefits & Advanced Features
-
True sine wave output for sensitive electronics
-
3000W continuous power with 6000W surge capability
-
150A battery charger for rapid charging
-
Charges dead batteries down to 0 VDC
-
Lithium battery support for modern energy systems
-
Built‑in transfer switch with 50A relay
-
Bluetooth monitoring via optional remote panel
-
Compact lightweight design for easy installation
-
Extended surge rating for motor loads
-
Ignition control for vehicle integration
-
Wide DC input range 10.1–18.0 VDC
-
Seamless integration with RV‑C, NMEA 2000, J1939
-
Quick connect terminals for simplified wiring
-
Universal fit for multiple applications
-
Durable construction tested for harsh conditions
Detailed Technical Specifications
-
Continuous Output: 3000W @ 40°C
-
Surge Power: 6000W (≤ 5 sec)
-
Output Voltage: 120 Vac true sine wave
-
Output Current: 25A continuous
-
Frequency: 50/60 Hz configurable
-
Peak Efficiency: 91%
-
Charger Current: 150A max
-
Input Voltage Range: 10.1–18.0 VDC
-
Operating Temp: ‑4°F to 140°F
-
Storage Temp: ‑40°F to 158°F
-
Humidity: 5–95% RH non‑condensing
-
Transfer Relay: 50A surge, 40A continuous
-
Dimensions: 19.49" L × 15.35" W × 8.46" H
-
Weight: 19.4 lbs
-
Country of Origin: Taiwan
-
UPC: 715535905767
-
Compliance: UL458, CSA 107.1, ABYC, FCC
Ideal Applications
-
RVs and motorhomes
-
Marine vessels
-
Heavy‑duty trucks
-
Work trucks
-
Specialty vehicles
Real‑World Performance & User Experiences
Users report reliable operation of air conditioners, microwaves, and fridges. The unit’s surge capacity ensures smooth startup of heavy loads. Compact design makes installation practical in tight compartments.
Comparison with Similar Generators
Compared to Freedom XC 2000, the XC Pro 3000 offers higher wattage, faster charging, and a stronger transfer relay, making it suitable for heavier loads.
Step‑by‑Step Setup Guide
-
Mount unit in ventilated space
-
Connect DC input cables
-
Wire AC IN/OUT terminals
-
Configure via Bluetooth remote
-
Test system under load
Maintenance Schedule & Tips
-
Inspect wiring monthly
-
Clean ventilation openings quarterly
-
Update firmware annually
-
Test transfer switch periodically
Long‑Term Cost of Ownership Analysis
Efficient charging reduces generator runtime, saving fuel. Durable design minimizes replacement costs. Compact size lowers installation expenses.
Compliance and Handling Disclaimer
This product complies with UL458, CSA, ABYC, and FCC standards. Follow all installation and handling instructions to ensure safe operation.
Warranty
2-Years of Manufacturer warranty applies per Xantrex policy. Proof of purchase required.
Frequently Asked Questions
Q: Can it charge lithium batteries? Yes.
Q: Does it support Bluetooth monitoring? Yes, with optional remote panel.
Q: Can it start heavy loads? Yes, up to 6000W surge.
Final Verdict
The Xantrex Freedom XC Pro 3000 is a professional‑grade inverter/charger offering high power, advanced features, and reliable performance. It is safe to list and ideal for RV, marine, and trucking applications.
